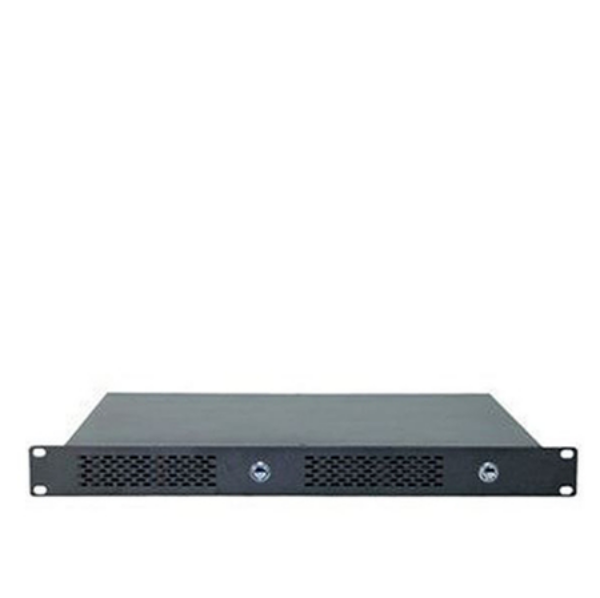

Mini-1U Server

Create ticket on product

Dimensions:
Mini 1U:  16.8(W)x12.9(D)x1.75(H) inch
Intel® Xeon™/Core™ i7/i5/i3 processor
Intel® H81 Chipset (Option: H97, Q87, B85, H170, B150, H110)
Up to 32GB per Motherboard
2  or 4 x Gigabit/10Gbit LAN Per system
SATA ports for HD/SSD + mSATA/M.2 SSD for OS Boot
Expansion: mSATA, M.2 or mini PCI-Express slot
USB 3.0/2.0 ports, Serial Ports
OS support: Windows Server, Windows 10, 8x, 7, XP, Linux, FreeBSD.
Applications: Internet Server, Network Appliance, Phone System, Digital Signage, Medical Equipment, Kiosk, POS, Entertainment Servers









SKU: 1U-1000T
Call for pricing(800-664-8917)
Product specifications
Motherboard
H8100L2 Dual LAN based on Intel® H81 Chipset with Intel® Haswell 4th Generation Core™ i3/i5/i7 processor
B8500L4 Quad LAN based on Intel® B85 Chipset with Intel® Haswell 4th Generation Core™ i3/i5/i7 processor
Q8700L2 Dual LAN based on Intel® Q87 Chipset with Intel® Haswell 4th Generation Core™ i3/i5/i7 or Xeon processor
H9700L2 Dual LAN based on Intel® H97 Chipset with Intel® Broadwell 5th Generation Core™ i3/i5/i7 or Xeon processor
X9900L2 Dual LAN based on Intel® X99 Chipset with Intel® Core™ i7 or Xeon processor (2011 socket)
H170L2 Dual LAN based on Intel® H170 Chipset with Intel® Skylake 6th Generation Core™ i3/i5/i7 processor
X-D1540L4 2x10Gbit+2GigaLAN with Fanless Xeon Processor
N3700G with GigaLAN based on Fanless Braswell Pentium® Processor
2550L2D Dual LAN based on Intel® Atom D2550 Processor
Processor
• Intel® Xeon™/Core™ i7/i5/i3, Pentium® and Celeron® processor (Haswell, Broadwell or Skylake)
• Supports Intel® Turbo-boost Technology
• L3 cache varies with CPU
Chipset
• Intel® H81 (Option: B85, Q87, H97, H170, X99)
Memory
• Supports Dual Channel DDR3 1600/1333MHz or Quad channel DDR4
• Supports non-ECC, unbuffered memory
• Supports ECC memory configured with Xeon processor
• Max. capacity up to 32GB per system board
LAN
• Dual port Gigabit LAN
• Option: Quad LAN per system board with 10Gbit LAN option with Xeon X-D1540 SKU.
• additional LAN through add-on module
Expansion Slot
• 1 x mini PCI-Express slot
• 1 x mSATA or M.2 (depends on system board)
Storage
• 4 x SATA 6.0 Gb/s
• mSATA or M.2 SSD slot (depends on system SKU)
Audio
• Realtek® 6-Channel High Definition Audio CODEC
Back Panel I/O
• 1 x HDMI port
• Optional VGA, DP, DVI Graphics Ports depends on different system board.
• 2 x RJ-45 Gigabit LAN port , optional 2 more on specific system board.
• 4 x USB 3.0
• 2 x USB 2.0/1.1
• Optional Serial Ports
Other I/O
• 2 x USB 2.0 connectors supporting additional 4 USB 2.0 ports
• 2 x 4-pin fan connectors, 1 x 3-pin fan connectors
• 1 x Front panel high definition audio header
• Optional 1 x S/PDIF Out header
• 1 x 24-pin EPS Power connector
• 1 x 4-pin ATX 12V Power connector
• 1 x Front Systim Panel connector
• 1 x DC12-19V
System BIOS
• 1 x 32 Mbit Flash Rom
• Licensed AMI UEFI BIOS
Manageability
• WOL, PXE, PME Wake
OS Support
• Windows 10 or 7 (32-bit or 64-bit)
• Windows 10 or 7 Pro (32-bit or 64-bit)
• Windows IoT / Embedded Linux / FreeBSD
• Dual-boot Windows / Linux
Application
• Internet Server, Network Appliance, Load Balance Gateway Control, Digital Signage, Medical Equipment, Banking Device, Phone System, Entertainment Server.
Chassis
• 1U-1000T 1U Rackmount Case
• Mini 1U front mount: 16.8(W)x12.9(D)x1.75(H) inch, Weight: 30 lb.
• 2 x 2.5" Internal Drive Bay+mSATA/M.2 SSD or 1 x 3.5"+1x2.5" Bay per system board
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 50,000 Hours
• RoHS Compliance
