[] supports  Intel® Xeon® processor E5-2600 v4†/ v3 family;
 [] Intel® C612 chipset
[]  Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ;
      8x DIMM slots
[]  1x PCI-E 3.0 x16, 2x PCI-E 3.0 x8 slots
[]  Intel® i210 Dual GbE LAN ports
      Intel® X540 Dual 10GBase-T ports
[]  6x SATA3 (6Gbps) ports w/ Intel C612 controller;
       RAID 0, 1, 5, 10
[]  4x USB 3.0 (2 rear, 2 via header)
      3x USB 2.0 (2 via header, 1 Type A)

SKU: C612A8T2
Call for pricing(800-664-8917)
Product specifications
Processor
• Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP**)
• Dual Socket R3 (LGA 2011)
Main Memory
• 8x 288-pin DDR4 DIMM slots
• Up to 1TB† ECC 3DS LRDIMM, 768GB ECC RDIMM
• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
• RDIMM: 32GB, 16GB, 8GB, 4GB
• LRDIMM: 64GB, 32GB
• 3DS LRDIMM: 128GB
Chipset
• Intel® C612 chipset
Networking
• Intel® X540 10GBase-T controller
• Intel® i210 Gigabit Ethernet controller
• Supports 10GBASE-T, 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8211E PHY (dedicated IPMI)
Video
• ASPEED AST2400 BMC
• Video resolution up to 1920x1200 @ 60Hz 32BPP
Expansion Slot
• 1x PCI-E 3.0 x16
• 2x PCI-E 3.0 x8
I/O
• 6x SATA3 (6Gbps) ports
• I-SATA 4 and I-SATA 5 support SATA DOM
• 2x RJ45 10GBase-T LAN ports
• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
• 4x USB 3.0 ports (2 rear + 2 via header)
• 3x USB 2.0 ports (2 via header + 1 Type A)
• 1x VGA Connector
• 1x COM Ports
• 2x SuperDOM (Disk on Module) ports
• 1x SATA DOM power connector
• 1x TPM 1.2 20-pin Header
Storage
• SATA3 (6Gbps); RAID 0, 1, 5, 10
BIOS
• 1 x 128Mbit Flash Rom
• Licensed AMI UEFI BIOS
OS Support
• Windows 10 or 7 (32-bit or 64-bit)
• Windows 10 or 7 Pro (32-bit or 64-bit)
• Windows IoT / Embedded Linux / FreeBSD
• Dual-boot Windows / Linux

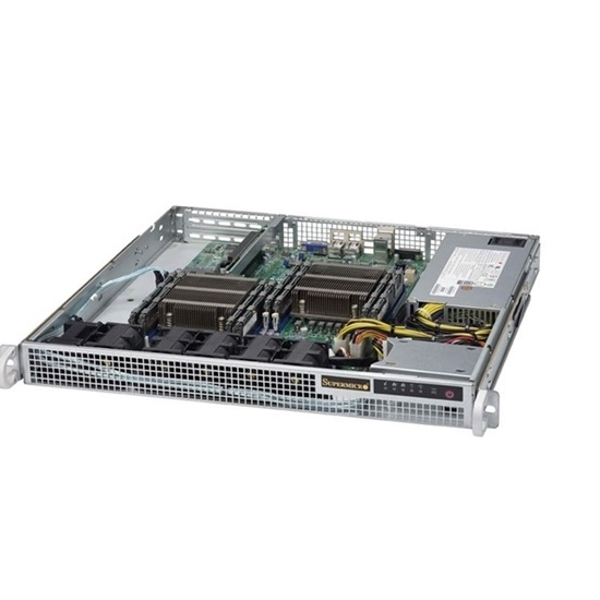

Form Factor
• 1U chassis
• Height 1.7" (43mm)
• Width 17.2" (437mm)
• Depth 16.9" (429mm)
• Gross Weight 16 lb (7.26 kg)
• Packaging 27'' (W) x 8''(H) 24'' (L)
Power
• 920W high-efficiency (94+%) power supply with PMBus
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 50,000 Hours
• RoHS Compliance
