Featured Highlights
Intel® Core™ i5/i3 Processor
Intel® Whiskey Lake Platform (SOC)
Intel® UHD 620 Graphics,4K/5K Resolution, HDR 10Bit color, HDMI+HDMI 2.0+DP
2 x DDR4 SO-DIMM for up to 32GB Memory
MiniPCIe slot
Realtek® Gigabit LAN + M.2 WiFi
5 USB 3.0, M.2 NVMe
5.1 ALC662 Audio Sound
Power Supply: DC12-19V input
OS Support: Linux, Windows 10, IOT
Applications: Set Top Box, Digital Signage, POS/Kiosk, Robot, Traffic Controller, Industrial Control/IPC, etc.
SKU: i63B
Call for pricing(800-664-8917)
Product specifications
Processor
• Intel® Core® i3-8145U 1.60/3.90GHz 2Core 4Threads 4M 15W
• Intel® Core® i5-8265U 2.10/3.90GHz 4Core 8Threads 6M 15W
Chipset
• Intel® Whiskey Lake Platform (SOC)
Graphics
• Intel® UHD 620 Graphics,4K/5K Resolution, HDR 10Bit color
• Support 1 HDMI1 Graphics ports
• 1 x HDMI, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2
• 1 HDMI x 2.0 Port
• 1 x DP 4K 60Hz Graphics Port
Memory
• 2 x DDR4 SO-DIMM
• 2400MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 32GB
Network
• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Optional WiFi via miniPCIe module
• Option: additional Gigabit LAN can be added via PCIe slot or by USB LAN module
Expansion Slot
• 1 x MiniPCIe sockets
• 1 x M.2 socket (configured with 11ac WiFi + Bluetooth module)
• 1 x M.2 Socket(type 2280, SATA-6GB/s)
• 1 x SIM socket for 3G/4G-LTE option
Storage
• 1 x mSATA 6Gb/s
• 1 x M.2 Socket(type 2280, SATA-6GB/s)
Audio
• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm analog stereo audio jacks
Back Panel I/O
• 1 x HDMI port
• 1 x HDMI port
• 1 x DP port
• 1 x LAN port
• 2 x 3.5mm audio jacks
• 1 x DC Jack In port
Internal I/O
• 5 x USB 3.0 Headers
• 1 x Serial COM Header (1 RS232)

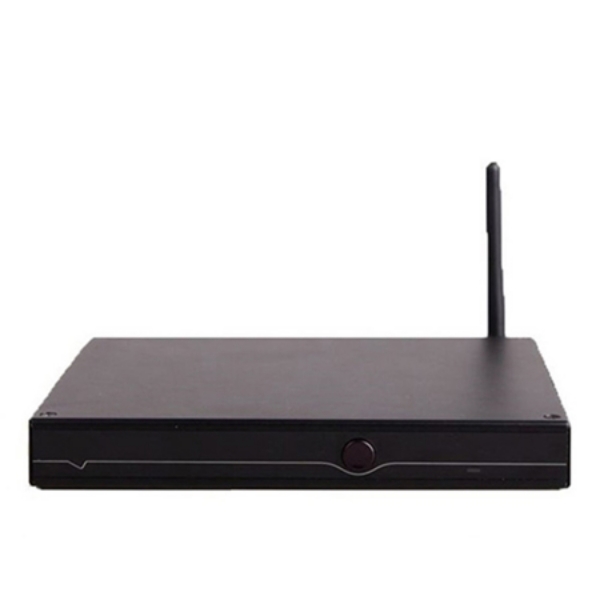

Chassis
• Nano -booksize I series
• Dimensions: 7.48"W x 5.87D x 1.18H
• Net Weight: 2lb (net) 5 lb.(gross with packaging)
• Power Supply: DC12-19V 36W to 60W
Power Supply
• Power: DC12-19V Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Linux, Windows 10, IOT
Application
• Set Top Box, Digital Signage, POS/Kiosk, Robot, Traffic Controller, Industrial Control/IPC, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
