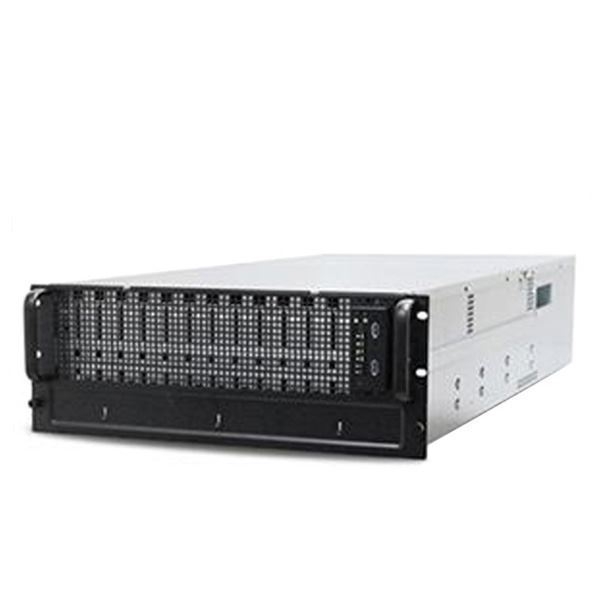

Storage Server

Create ticket on product

Featured Highlights

Dimensions: 19(W)x37.5(D)x7(H) inch
Dual Intel® Xeon E5-2600 Processors
60 x 3.5'' and up to 6x 2.5'' Hot Swap Bay
Intel® Quad GigaLAN or 10Gbit LAN, Fibre Channel supported
4-Channel ECC Memory per processor
Hardware RAID Acceleration Controller
1890W 3+1 Redundant Power Supply

OS: Windows Server 2012, 2008, 2000, Solaris, Linux, FreeBSD, NAS: OpenFiler, FreeNAS

Application: Data Centers, Enterprise Archiving, or Cloud Storage.



SKU: PolyStor 4060A
Call for pricing(800-664-8917)

Product specifications
Processor
• Dual Intel® Xeon™ Processor E5-2600 / E5-2600 v2 Series
• Option: Intel® Xeon™ Processor E5-2600 v3 Series
Memory
• 16 x DIMM Sockets
• Quad-Channel ECC DDR3 system memory
• Option: DDR4 ECC memory with E5-2600v3 SKUs
OS and Storage Manager
• Linux OS and NAS/iSCSI WEB based Manager
• Optional: Solaris, Windows Server, MS Storage Server, VMware, FreeBSD, Other Open Soruce Linux.
File System
• XFS, EXT3 standard
• Optional: ZFS, NTFS, or any file system supported by the x86 platform
Storage
• 60 x 3.5" Hot-swap SAS/SATA and up to 6 x 2.5" How-swap drive bays
• Supports SAS-2, SAS, SATA-3, SATA-2 Hard Drive or SSD
• Hardware Accelerated RAID Controller
• Supports RAID 0, 1, 5, 6, 10, 50, 60 with hot spare drives
• Supports 3.5" or 2.5" hard drive
• Supports 2.5" SSD
• Supports PCIe SSD Module
Network I/O
• 4 Gigabit LAN ports
• Optional: Additional 4 or 8 Gigabit LAN, 10Gbit Ethernet, Fibre Channel for SAN (can be mixed)
• 56Gbit FDR or 40Gbit QDR Infiniband
Network Service
• DHCP client/server (default is DHCP client/static)
• Network Protocol: CIFS/SMB, NFS, FTP
• iSCSI / NAS / SAN (Can be mixed)
Management Interface
• Web GUI
• E-mail notification
• Local Host Access via VGA and Keyboard
Remote Boot Function
• Requires NIC with PXE support on client
Expansion
• Up to 6 x PCIe 3.0 8x slots (full height, full length)
File Sharing
• Authorizes users to access shared folder using passwords (by default, there is one "Public" shared folder)
Access Control
• Allows users to access shared files for "Read Only" or "Read/Write"
I/O
• 4x USB 2.0 rear connectors
• VGA graphics
• 2 x SATA-6G/s, 4 SATA-3G/s SATA port, optional SAS ports supported
• Optional: 2 additional I/O (such as COM, PS/2, TPM) supported by header or add-on
Client Support
• MS Windows® 8, 7, XP and Windows Server, Linux , FreeBSD, Solaris and Mac
• Snap Shot Backup and Recovery Client Support
• Active Directory, Rsync are supported
Remote Controls
• Power on/off, system reset + USB
• IPMI, KVM over IP, Remote Power On/Off is supported
Indicators
• Power, LAN and HDD LEDs
Cooling
• Rear: 9 x 40 x 56mm hot-swap fans for HDD Bays + 4 x 60 x 38mm fans for MB
Power Supply
• 1890W 3+1 redundant power supply (4 x modules) UR/FCC/CE Certified
Operating Temperature
• From 0 °C to 40 °C (32°F to 104 °F)
Non-Operating Temperature
• From 0 °C to 40 °C (32°F to 104 °F)
Operating Humidity
• From 10% to 90% relative humidity
EMI Safety
• CE/FCC
Dimensions
• 4U Rackmount Chassis
• Dimensions: 19" W x 7" H x 37.5" D
• Weight: 200 lb.
Warranty
• SAS and SATA-E Hard Driver carry 5 year,SATA-N carries 3 year
• Base system:3 year standard parts and depot labor;lifetime toll free phone support.
• Optional:3 or 5-year(total years) extended warranty with advanced parts replacement service.
• Optional:7+year extended warranty service available.
• On-site service is available with additional cost.
