Storage Server

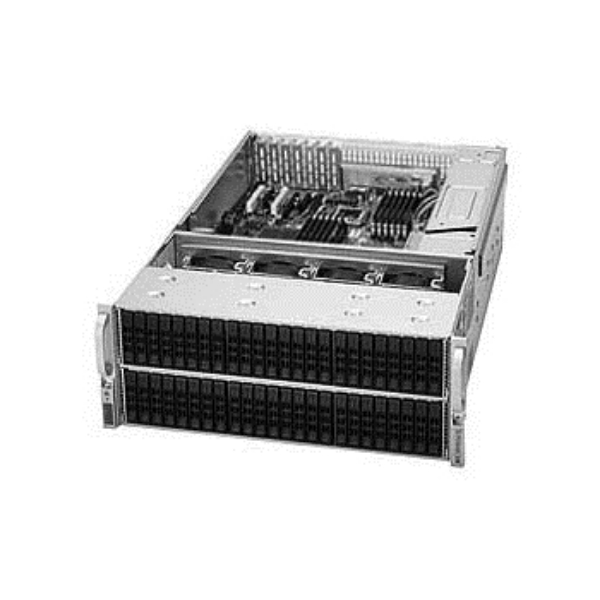

PolyStor 4072SD

72 x SSD/SATA/SAS, HW RAID-5/6 Acceleration
4 x SFP+ / GigaLAN, High Performance iSCSI/NAS/SAN

Featured Highlights

Up to 72 2.5" SSD/HD per box. With an affordable price, this is the best SSD storage solution.
8,000Mb/s Hardware Accelerated RAID-0, 1, 5, 6, 10, 50, 60 with hot spares option.
Support for SSD, SAS and SATA drives (can be mixed).
Support for iSCSI, NFS, SMB, NAS (can be mixed).
4 to 12 x Gigabit, or mix with 10Gbit, Fibre Channel Host, Infiniband.
One to four Intel Xeon Multi-Core processors; up to 2TB system memory(DDR 4).
Linux-based storage server for large-capacity, high-performance I/O networks.
Private / Public cloud application for live data, archive backup and recovery.
Supports Windows, Mac and Linux Clients.
 User-friendly Web interface for setting up users and access rights.
 Redundant Power Supply. (3+1), KVM over IP supported.

 PolyStor 4072SD is optimized for 2.5" SSD or SAS storage server in a single 4U box with individual hot swap drives, at a competitive price. This is one of the best intelligent network storage solution for data centers, enterprise archiving, or cloud storage.

SKU: PolyStor 4072SD

Product specifications
Processor
• Dual Intel® Xeon™ Processor E5-2600 V4 Series
Memory

• 32GB Quad-Channel ECC DDR4 system memory
• Optional: up to 3TB system memory

OS and Storage Manager
• Linux OS and NAS/iSCSI WEB based Manager
• Optional: Red Hat Ceph ,Solaris, Windows Server, MS Storage Server, VMware, FreeBSD, Other Open Soruce Linux.
File System
• XFS, EXT3 standard
• Optional: ZFS, NTFS, or any file system supported by the x86 platform
Network I/O
• 4 Ethernet ports : 2 x 10Gbit SFP+, 2 x Gigabit RJ45 copper ports
• Optional: Additional 4 or 8 Gigabit LAN, 10Gbit Ethernet, Fibre Channel for SAN (can be mixed)
• EDR or FDR Infiniband supported
Network Service
• DHCP client/server (default is DHCP client/static)
• Network Protocol: CIFS/SMB, NFS, FTP
• iSCSI / NAS / SAN (Can be mixed)
Management Interface
• Web GUI
• E-mail notification
• Local Host Access via VGA and Keyboard
Expansion Slot

• 4 x PCIe 3.0 x8 slots (Low Profile height, full length)
• Optional up to 7 PCIe Slot with different SKU MBs.

Remote Boot Function

• Requires NIC with PXE support on client

File Sharing
• Authorizes users to access shared folder using passwords (by default, there is one "Public" shared folder)
Access Control
• Allows users to access shared files for "Read Only" or "Read/Write"
Storage/RAID
• Hardware accelerated RAID controller, PCIe 3.0 16x bus
• High performance sustained read and write. Unparalleled performance
• Over 8,000MB/sec random write and 3,500MB/sec random read
• 48 x 2.5" hot-swap drive bays for SSD/SAS/SATA 4TB, 2TB, 1TB Drive
• Optional: 1 Internal 2 x 2.5" RAID drives for OS.
• RAID 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60 with hot spare support (mixed configurations available)
I/O Ports

• 4x USB rear connectors
• VGA graphics
• 6 x SATA-6G/s port, optional SAS, M.2 NVMe, DOM ports for OS
• Optional: 2 additional I/O (such as COM, PS/2, TPM) supported by header or add-on

Client Support
• MS Windows® 10, 7, XP and Windows Server, Linux , FreeBSD, Solaris and Mac
• Snap Shot Backup and Recovery Client Support
• Active Directory, Rsync are supported
Remote Controls
• Power on/off, system reset + USB
• IPMI, KVM over IP, Remote Power On/Off is supported
Indicators
• Power, LAN and HDD LEDs
Cooling

• Middle: 7 x 8cm Hot-swap cooling fans

Power Supply
• 1400W 1+1 redundant power supply
• 80 Plus Platinum class, UR/FCC/CE Certified
Operating Temperature
• From 0 ºC to 40 ºC (32ºF to 104 ºF)
Non-Operating Temperature
• From 0 ºC to 40 ºC (32ºF to 104 ºF)
Operating Humidity
• From 10% to 90% relative humidity
EMI Safety
• CE/FCC
Dimensions

• 4U Rackmount Chassis
• 72 x 2.5" SAS2/SATA3 How Swap Bay with dual expander backplane
• 7 low profile height slots
• Optional internal 2 x 2.5" fixed drive bays for OS SSD.
• Dimensions: 17.2" W x 7" H x 27.5" D
• Weight: 125 lb.

Warranty
• SSD, SAS and SATA-E Hard Driver carry 5 year,SATA-N carries 3 year
• Base system:3 year standard parts and depot labor;lifetime toll free phone support.
• Optional:3 or 5-year(total years) extended warranty with advanced parts replacement service.
• Optional:7+year extended warranty service available.
• On-site service is available with additional cost.
*
*
*
