Featured Highlights

Up to 48 Hot Swap 2.5" NVMe SSD U.2 per box.
4 NVMe PCIE 3.0 x4 Direct access with CPU at Maximum Performance.
Support for RAID-0/1/5/6/10/50/60
Dual Xeon E5-2600v4 Processor, 24 x DDR4 for up to 3TB Memory.
4 Gigabit/10Gbit Ethernet, SFP+, Fibre Channel Host, Infiniband.
Linux-based storage server for large-capacity, high-performance I/O networks.
Private / Public cloud application for live data, archive backup and recovery.
Supports Windows, Mac and Linux Clients.
User-friendly Web interface for setting up users and access rights.
1600W Redundant Power Supply

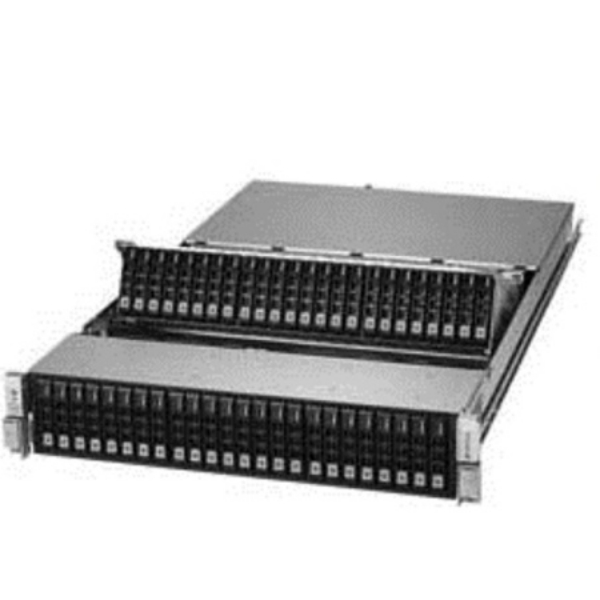

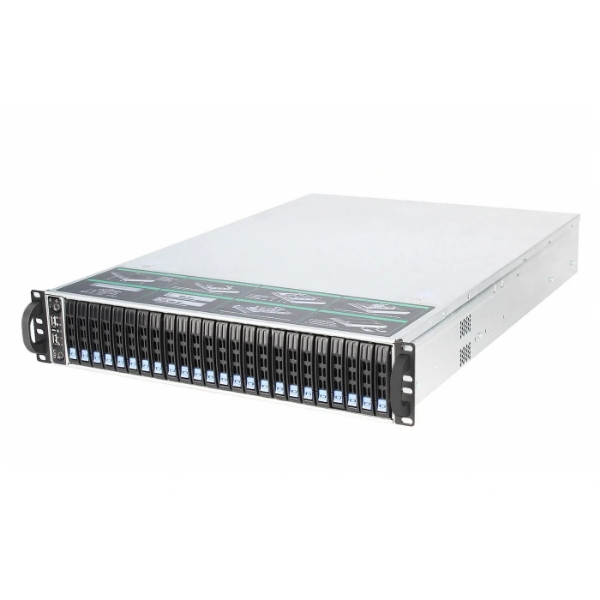

 PolyStor 2048NVMe is designed for Maximum storage performance with up to 48 2.5" NVMe SSD storage server in a single 4U box with individual hot swap drives, at a very competitive price. This is one of the best intelligent network storage solution for data centers, enterprise archiving, or cloud storage.

Call for pricing(800-664-8917)
Product specifications
Processor
• Dual Intel® Xeon™ Processor E5-2600 V4 Series
• Intel® C612 Chipset
Main Memory
• 32GB Quad-Channel ECC DDR4 system memory
• Optional: up to 3TB system memory, 24 DIMM Sockets
OS and Storage Manager
• Linux OS and NAS/iSCSI WEB based Manager
• Optional: Red Hat Ceph ,Solaris, Windows Server, MS Storage Server, VMware, FreeBSD, Other Open Soruce Linux.
File System
• XFS, EXT3 standard
• Optional: ZFS, NTFS, or any file system supported by the x86 platform
Network I/O
• 4 Ethernet ports : 2 x 10Gbit SFP+, 2 x Gigabit RJ45 copper ports
• Optional: Additional 4 or 8 Gigabit LAN, 10Gbit Ethernet, Fibre Channel for SAN (can be mixed)
• EDR or FDR Infiniband supported
Network Service
• DHCP client/server (default is DHCP client/static)
• Network Protocol: CIFS/SMB, NFS, FTP
• iSCSI / NAS / SAN (Can be mixed)
Management Interface
• Web GUI
• E-mail notification
• Local Host Access via VGA and Keyboard
Remote Boot Function
• Requires NIC with PXE support on clien
Expansion
• Two PCIe 3.0 x16 slots (Low Profile)
• One PCIe 3.0 x8
• One PCIE 3.0 x8 for SAS3 Add-in-module
• One LAN Module Slot for Flexible Networking Module Options.
File Sharing
• Authorizes users to access shared folder using passwords (by default, there is one "Public" shared folder)
Access Control
• Allows users to access shared files for "Read Only" or "Read/Write"
Storage/RAID
• Hardware accelerated RAID controller, PCIe 3.0 16x bus
• High performance sustained read and write. Unparalleled performance
• Over 8,000MB/sec random write and 3,500MB/sec random read
• 48 x 2.5" hot-swap drive bays for SSD/SAS/SATA 4TB, 2TB, 1TB Drive
• Optional: 1 Internal 2 x 2.5" RAID drives for OS.
• RAID 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60 with hot spare support (mixed configurations available)
I/O
• 3x USB 3.0 (2 rear, 1 Type A) connectors
• VGA graphics
• 4 x NVMe PCIe 3.0 x4 ports
• 4 x SATA-6G/s RAID port, 2 DOM (Disk on Module) ports
• 2 additional I/O (2COM, 1 TPM)
Client Support
• MS Windows® 10, 7, XP and Windows Server, Linux , FreeBSD, Solaris and Mac
• Snap Shot Backup and Recovery Client Support
• Active Directory, Rsync are supported
Remote Controls
• Power on/off, system reset + USB
• IPMI, KVM over IP, Remote Power On/Off is supported
Indicators
• Power, LAN and HDD LEDs
Power Supply
• 1620/1200/1000W 2+1 redundant power supply
• 80 Plus Platinum class, UR/FCC/CE Certified
Operating Temperature
• From 0 ºC to 40 ºC (32ºF to 104 ºF)
Non-Operating Temperature
• From 0 ºC to 40 ºC (32ºF to 104 ºF)
Operating Humidity
• From 10% to 90% relative humidity
EMI Safety
• CE/FCC
Chassis
• 2U Rackmount Chassis
• 48 x 2.5" NVMe front hot swap bays
• 2 x rear 2.5" hot-swap SAS/SATA/SSD OS drive bays
• Dimensions: 17.2" W x 3.5 H x 30.2" D (35.2" with cable management ARM installed).
• Weight: 100 lb.
Warranty
• NVMe SSD carries 5 year
• Base system:3 year standard parts and depot labor;lifetime toll free phone support.
• Optional:3 or 5-year(total years) extended warranty with advanced parts replacement service.
• Optional:7+year extended warranty service available.
• On-site service is available with additional cost.
