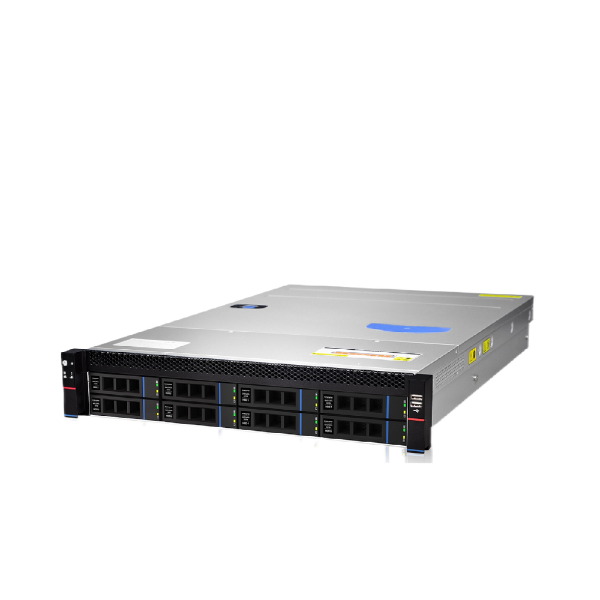

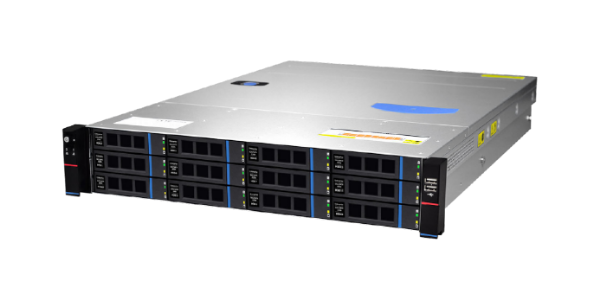

2U8S32-C741

2U General Server

Key Features:

• Socket 4th & 5th Gen Xeon® CPU
• Up to 16×3.5"+2×2.5" HDD or 29×2.5" HDD，Up to 24×NVMe
• Up to 10×PCIe expansion slots
• 32 DDR5 ECC Memory, up to 8TB
• 4×1GbE / 2×10Gb SFP+ / 4×10Gb SFP+/ 2×25Gb SFP28 option
• BMC KVM Remote Management
• 2 1600W-3000W Platinum/Titanium Redundant Power Supply
• GPU Cluster for AI, Deep Learning, HPC.

SKU: 2U8S32

Specifications
Request for Info

Product specifications

Processor • 1 or 2×Intel® 4th & 5th Gen Xeon® Sapphire Rapids/ Emerald Rapids , up to 350W Chipset • Intel C741
Memory • 32× DDR5 slots (RDIMM)，16channel, up to 5600MHz, support RDIMM/3DS RDIMM • Up to 8TB Storage • Integrated 6Gb/s SATA controller； • 12Gb/s SAS HBA or 12Gb/s SAS RAID option • Up to 16×3.5"+2×2.5" HDD or 29×2.5" HDD，Up to 24×NVMe • Front: Up to 12×3.5" or 25×2.5" HDD • Rear : Up to 4×3.5"+2×2.5" HDD or 2×3.5"+4×2.5" HDD • Internal : 2×M.2(PCIe 4.0 x4，2280&22110)
Expansion Slot • Up to 10× standard expansion slots • 3×FHFLDW or 6×FHFLSW card slots Network • 1×1GbE IPMI RJ45 (AST2600) • Support 1× PCIe x8/ x16 OCP 3.0 SFF expansion card，multi-host、iSCSI (NCSI) supported • 4×1GbE / 2×10Gb SFP+ / 4×10Gb SFP+/ 2×25Gb SFP28 option
I/O • 1×VGA • 1×COM • 2×USB3.0 • 1×IPMI RJ45 • 1×Standard OCP NIC 3.0 slot Front Panel • 1×Optional VGA • 2×USB3.0 • 1×LCD Mini USB • 1×DVD with 2U8 & 2U16(2.5")
Internal I/O • 2 × USB 3.0 header • 2 × USB 2.0 header • 1× USB 2.0 Type A • 10 × SATA 3.0（2 × SFF-8643+2 × 7pin SATA） • 3 × MCIO（PCIe 5.0x8），support 6 × NVMe • 2 × M.2 , PCIe 4.0 x4 , 2280 & 22110 • 8 × 4pin FAN • 1 × SPI TPM 2.0 Chassis • 2U standard rack server • W 436mm × H 87mm × D 763mm（783mm with ear bezels）
OS Support • Windows Server, Linux Power Supply • 2×Power Modules, support 1+1 redundancy（Active-Active & Active-standby module)，support hot-swap • 800W/1300W/1600W/2000W Platinum or Titanium power module option
Application • GPU for AI, Deep Learning, HPC. Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
