Processor
• Single or Dual 5th Gen Intel® Xeon® Processors
Memory
• 32 DIMM for 16-Channel DDR5 ECC system memory • Optional: up to 8 TB system memory
|
OS and Storage Manager
• Linux OS and NAS/iSCSI WEB based Manager
• Optional: Solaris, Windows Server, MS Storage Server, VMware, FreeBSD, Other Open Soruce Linux.
File System
• XFS, EXT3 standard • Optional: ZFS, NTFS, or any file system supported by the x86 platform
|
Network I/O
• 2, 4 or 8 x 1GbE, 10GbE, 100GbE, 400GbE Ethernet for NAS/iSCSI, 4G/8G/16G Fibre Channel for SAN (can be mixed).
Network Service
• DHCP client/server (default is DHCP client/Static) • Network Protocol: CIFS/SMB, NFS, FTP • iSCSI (optional)
|
Management Interface
• AST2600 BMC supports IPMI 2.0 with a dedicated GbE Port • Web GUI • E-mail notification • Local Host Access via VGA and Keyboard
Expansion Slot
• Up to 6 x PCIe 5.0 x16 slots (full height, full length)
|
Remote Boot Function
• Requires NIC with PXE support on client
File Sharing
• Authorizes users to access shared folder using passwords (by default, there is one "Public" shared folder)
|
Access Control
• Allows users to access shared files for "Read Only" or "Read/Write"
Storage/RAID
• 1 or 2 Hardware-accelerated RAID controllers (1 or 2 RAID processors) PCIe 4.0 8x bus • Over 24,000MB/sec write and 70,000MB/sec read • 24 x 3.5" hot-swap drive bays for SAS-12G/SATA • Optional: 1 Internal 3.5" and 2 x 2.5" drives • RAID 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60 with hot spare support (mixed configurations available)
|
I/O Ports
• 2x USB 3.0 rear connectors • 2 x USB 2.0 Front Connectors • VGA graphics • 2 x 10GbE LAN Ports (Optional : 4 or 8 LAN by 10GbE/100GbE/200GbE/400GbE NIC cards) • 1 x Serial COM rear • 4 SATA-3 ports • TPM Infineon 2.0
Client Support
• MS Windows® XP, 7, 10, 11, Windows® Server, Linux, FreeBSD, Mac OS, Android. • Snap Shot Backup and Recovery Client Support • Active Directory and Rsync are supported
|
Remote Controls
• Power on/off, system reset + USB • IPMI, KVM over IP, Remote Power On/Off is supported
Indicators
• Power, LAN and HDD LEDs
|
Cooling
• Rear: 9 x 40 x 56mm hot-swap fans for HDD Bays + 4 x 60 x 38mm fans for MB
Power Supply
• 800W 1+1 redundant 80 Plus Platinum Level power supply UR/FCC/CE Certified
|
Environment
• System Operating Temperature: 0°C ~ 35°C • Non-operating Temperature: -20°C ~ 70°C • Non-operating Relative Humidity: 5% to 85% (non-condensing)
|
Dimensions

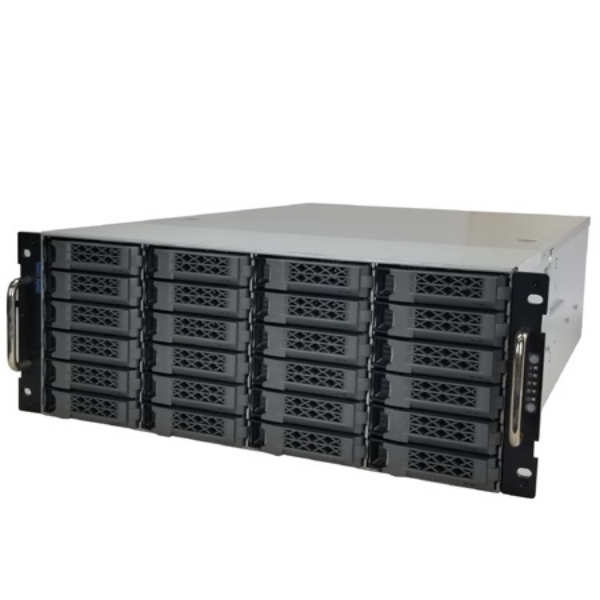

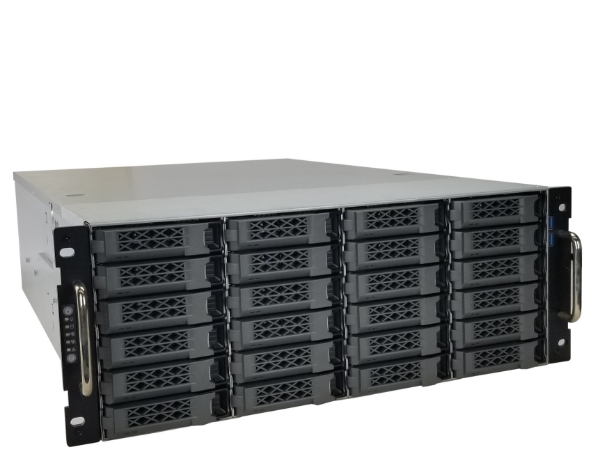

• 4U 24 Bay SAS/SATA Rackmount • 7 Full Size Slots • 2 Rear 2.5" Hot Swap SATA-6G/s Drive Bays • 12G/s Expander Back Plan for 24 How Swap SAS/SATA HD/SSD • Dimension: 17" x 22" x 7" (435mm x 560 x 177), 99 lb (45kg)
Warranty
• SAS and SATA-E Hard Driver carry 5 years • Base system: 3 years standard parts and depot labor; lifetime toll-free phone support. • Optional: 3 or 5-year(total years) extended warranty with advanced parts replacement service.
|
