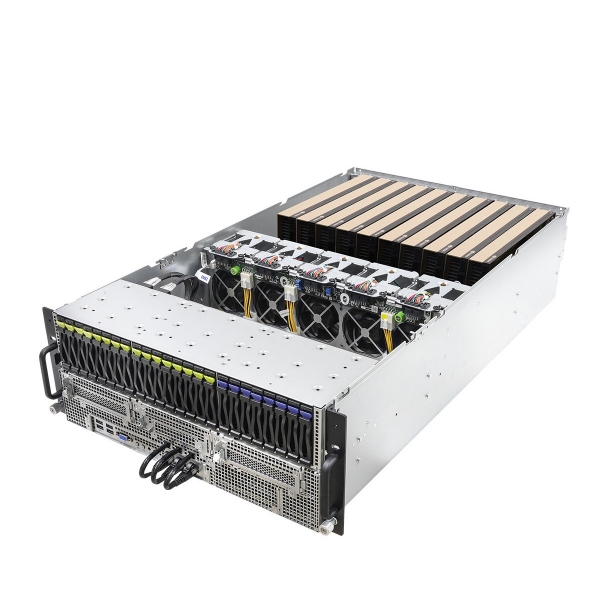

PolyAI 4U10G-E5

4U, 10-GPU EPYC™ 9005 for AI Computing, Up to 10 x NVIDIA RTX PRO™ 6000/5000/4500, H100, H200 GPU Cards

Key Features:

• 4U, 10 x Dual-Slot GPU Cards (RTX PRO™ 6000/5000/4500, H100, H200)
• AMD EPYC™ 9005 Series Processors
• Front 16 x Hot-swap 2.5" NVMe or 24 x 2.5” U.2/SAS/SATA SSD/HD Drive Bays
• Up to 10 × FHFL GPU cards
• 12+12 x DIMM slots (1DPC), 32 DDR5 ECC Memory, up to 8TB
• Intel® i350: 2 x RJ45 (1GbE)
• BMC KVM (IPMI 2.0) Remote Management
• 4 x 2000W 3+1 CRPS Titanium Redundant Power Supply
• Runs Microsoft Windows Server, Linux OS
• GPU Cluster for AI, Deep Learning, HPC.

SKU: BBP9-AE524U10G

Specifications
Request for Info

Product specifications

Processor • AMD EPYC™ 9005 series processors Memory • 12+12 x DIMM slots (1DPC) Supports DDR5 288-pin RDIMM, RDIMM-3DS • RDIMM: 96GB (2R) ,RDIMM-3DS: 512GB (2S8Rx4) • Up to 8TB ECC
Storage • 16 x Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays or 24 x Hot-swap 2.5" SATA/SAS* drive bays • Additonal RAID/HBA card required to support the 24 x 2.5" SATA/SAS drive bays • 24-port NVMe/SATA/SAS passive backplanes • SAS drive is only supported with additonal RAID/HBA cards GPU* • ASPEED AST2600 DDR4 512MB • Up to 10 x Dual-Slot NVIDIA RTX PRO™ 6000/5000/4500/4000, A100, H100, H100NVL, H200NVL, A800, H800 GPU cards via PCIe 5.0 x16 slots
Expansion Slot • 10 x FHFL dual-slot PCIe5.0 x16 (with PEX89104 PCIe Switch) • 1 x FHFL single-slot PCIe5.0 x16 (CPU direct link) • Front: 2 x FHHL PCIe5.0 x16 • 2 x FHFL single-slot PCIe5.0 x8, shared space with adjacent dual-slot (with PEX89104 PCIe Switch) Network • Intel® i350: 2 RJ45 (1GbE) • 1 x OCP NIC 3.0 (PCIe5.0 x16)
I/O • 1 × VGA • 2 Type-A (USB3.2 Gen1) • 2 × IPMI RJ45 • 1 × Standard OCP NIC 3.0 slot Internal I/O • 2 × USB 3.2 header • 1 × VROC Key header • 12 × 4pin FAN • 1 × COM header • 1 × VGA header for FP • 1 × SPI TPM 2.0
Front I/O • 2 x RJ45 (1GbE) by Intel i350, shares with Rear IO • 1 x dedicated IPMI, shares with Rear IO • 4 x Type-A (USB3.2 Gen1) • 1 x DB15 (VGA) Chassis 4U Rackmount • Dimensions: 786 x 438 x 176.5 mm (30.9'' x 17.2'' x 6.9'')
Power Supply • 4 x Standard CRPS Power Modules，hot-swappable, support 2+2/ 3+1/ 1+1 redundancy • 1600W/2000W/2400W/2700W Platinum or Titanium power supply module optional OS Support Windows Server, Linux
Applications • GPU for AI, Deep Learning, HPC. Environment • System Operating Temperature: 0°C ~ 35°C • Non-operating Temperature: -20°C ~ 70°C • Non-operating Relative Humidity: 5% to 85% (non-condensing)

Your name *

Your email *

Inquiry *

Product specifications

Processor • AMD EPYC™ 9005 series processors Memory • 12+12 x DIMM slots (1DPC) Supports DDR5 288-pin RDIMM, RDIMM-3DS • RDIMM: 96GB (2R) ,RDIMM-3DS: 512GB (2S8Rx4) • Up to 8TB ECC
Storage • 16 x Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays or 24 x Hot-swap 2.5" SATA/SAS* drive bays • Additonal RAID/HBA card required to support the 24 x 2.5" SATA/SAS drive bays • 24-port NVMe/SATA/SAS passive backplanes • SAS drive is only supported with additonal RAID/HBA cards GPU* • ASPEED AST2600 DDR4 512MB • Up to 10 x Dual-Slot NVIDIA RTX PRO™ 6000/5000/4500/4000, A100, H100, H100NVL, H200NVL, A800, H800 GPU cards via PCIe 5.0 x16 slots
Expansion Slot • 10 x FHFL dual-slot PCIe5.0 x16 (with PEX89104 PCIe Switch) • 1 x FHFL single-slot PCIe5.0 x16 (CPU direct link) • Front: 2 x FHHL PCIe5.0 x16 • 2 x FHFL single-slot PCIe5.0 x8, shared space with adjacent dual-slot (with PEX89104 PCIe Switch) Network • Intel® i350: 2 RJ45 (1GbE) • 1 x OCP NIC 3.0 (PCIe5.0 x16)
I/O • 1 × VGA • 2 Type-A (USB3.2 Gen1) • 2 × IPMI RJ45 • 1 × Standard OCP NIC 3.0 slot Internal I/O • 2 × USB 3.2 header • 1 × VROC Key header • 12 × 4pin FAN • 1 × COM header • 1 × VGA header for FP • 1 × SPI TPM 2.0
Front I/O • 2 x RJ45 (1GbE) by Intel i350, shares with Rear IO • 1 x dedicated IPMI, shares with Rear IO • 4 x Type-A (USB3.2 Gen1) • 1 x DB15 (VGA) Chassis 4U Rackmount • Dimensions: 786 x 438 x 176.5 mm (30.9'' x 17.2'' x 6.9'')
Power Supply • 4 x Standard CRPS Power Modules，hot-swappable, support 2+2/ 3+1/ 1+1 redundancy • 1600W/2000W/2400W/2700W Platinum or Titanium power supply module optional OS Support Windows Server, Linux
Applications • GPU for AI, Deep Learning, HPC. Environment • System Operating Temperature: 0°C ~ 35°C • Non-operating Temperature: -20°C ~ 70°C • Non-operating Relative Humidity: 5% to 85% (non-condensing)
