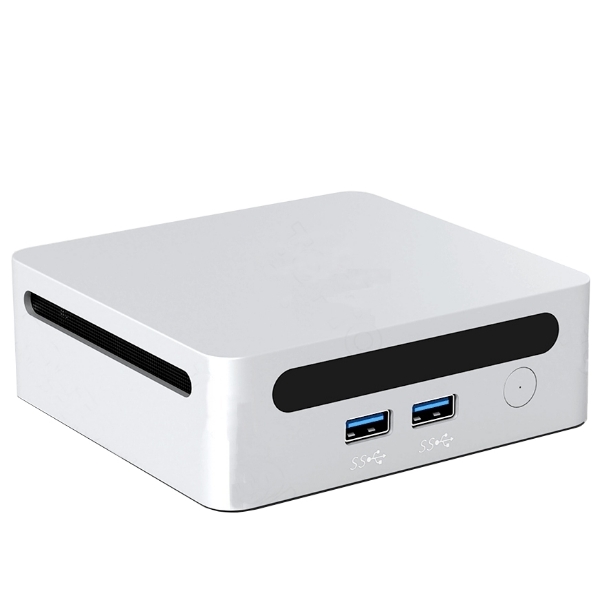

NUC-A3500L2

AMD Ryzen™ 5 3500U / Ryzen™ Embedded R2514 NUC-Size Mini PC, 3 Displays with 2 x HDMI 2.0 + USB Type-C, Dual 1GbE/Optional 2.5GbE LAN, 2 x DDR4 SO-DIMM, Dual M.2 2280 Storage and 4 x USB 3.2

Featured Highlights
	AMD Ryzen™ 5 3500U / Ryzen™ Embedded R2514 Processor
	AMD Ryzen™ SoC Platform
	AMD Radeon™ Graphics, 3 Displays with 2 x HDMI 2.0 + USB Type-C
	2 x DDR4-2666 SO-DIMM Slots, up to 32GB
	1 x M.2-2280 PCIe 3.0 x4 NVMe SSD + 1 x M.2-2280 SATA/NVMe SSD
	Dual 1GbE LAN / Optional Dual 2.5GbE LAN, M.2-2230 Wi-Fi/Bluetooth
	2 x USB 3.2 Gen 2 Type-A + 2 x USB 3.2 Gen 1 Type-A + 1 x USB Type-C
	1 x 3.5 mm audio input/output combo jack
	19V 65W DC Power Input
	OS Support: Windows 11 and Linux
	Applications: Low-Cost Value PC, Multi-Display Digital Signage, Office Productivity and Client Computing

In Stock

SKU: NUC-A3500L2

Specifications
Request for Info

Product specifications

Processor • AMD Ryzen™ Embedded R2514 Processor • AMD Ryzen™ 5 3500U Processor Chipset • AMD Ryzen™ SoC Platform
Graphics • AMD Radeon™ Graphics • Supports up to 3 displays • 2 x HDMI® 2.0 ports, supporting a maximum resolution of 4K@60Hz • 1 x Type-C port with DP output, supporting a maximum resolution of 4K@60Hz Memory • 2 x DDR4 SO-DIMM • 3200MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x RJ45 Gigabit (10/100/1000 Mb/s) LAN • WiFi6 (802.11AX) & Bluetooth5.2 • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2242 (for SATA-6Gb/s or PCIe 3.0 x4 NVMe) • 1 x M.2 2280 (for SATA-6GB/s or PCIe 3.0 x4 NVMe)
Storage • 1 x M.2 2242 (for SATA-6Gb/s or PCIe 3.0 x4 NVMe) • 1 x M.2 2280 (for SATA-6GB/s or PCIe 3.0 x4 NVMe) Audio • HD audio • 1 x 3.5mm Analog Stereo Combo jack (Headphone/Mic)
Back Panel I/O • 2 x HDMI® 2.0 ports • 1 x Type-C port (for Graphics, Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions) • 2 x USB 2.0 ports • 1 x LAN port • 1 x 3.5mm Audio Combo jack • 1 x DC-In Power Connector Other I/O • 2 x USB 3.0 ports (Front)
System BIOS • AMI® UEFI / Legacy BIOS Chassis • Nano Enclosure • Dimensions: 4.35"(W) x 4.17"(D) x 1.48"(H), Weight: 3 lb. • Color: Black or White as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC19V 3.42A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11/10, Linux
Applications • AI-IoT, Digital Signage, IPTV, Entertainment PC, etc. Environment • Operating Temperature: -5 to +45 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • AMD Ryzen™ Embedded R2514 Processor • AMD Ryzen™ 5 3500U Processor Chipset • AMD Ryzen™ SoC Platform
Graphics • AMD Radeon™ Graphics • Supports up to 3 displays • 2 x HDMI® 2.0 ports, supporting a maximum resolution of 4K@60Hz • 1 x Type-C port with DP output, supporting a maximum resolution of 4K@60Hz Memory • 2 x DDR4 SO-DIMM • 3200MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x RJ45 Gigabit (10/100/1000 Mb/s) LAN • WiFi6 (802.11AX) & Bluetooth5.2 • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2242 (for SATA-6Gb/s or PCIe 3.0 x4 NVMe) • 1 x M.2 2280 (for SATA-6GB/s or PCIe 3.0 x4 NVMe)
Storage • 1 x M.2 2242 (for SATA-6Gb/s or PCIe 3.0 x4 NVMe) • 1 x M.2 2280 (for SATA-6GB/s or PCIe 3.0 x4 NVMe) Audio • HD audio • 1 x 3.5mm Analog Stereo Combo jack (Headphone/Mic)
Back Panel I/O • 2 x HDMI® 2.0 ports • 1 x Type-C port (for Graphics, Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions) • 2 x USB 2.0 ports • 1 x LAN port • 1 x 3.5mm Audio Combo jack • 1 x DC-In Power Connector Other I/O • 2 x USB 3.0 ports (Front)
System BIOS • AMI® UEFI / Legacy BIOS Chassis • Nano Enclosure • Dimensions: 4.35"(W) x 4.17"(D) x 1.48"(H), Weight: 3 lb. • Color: Black or White as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC19V 3.42A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11/10, Linux
Applications • AI-IoT, Digital Signage, IPTV, Entertainment PC, etc. Environment • Operating Temperature: -5 to +45 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
