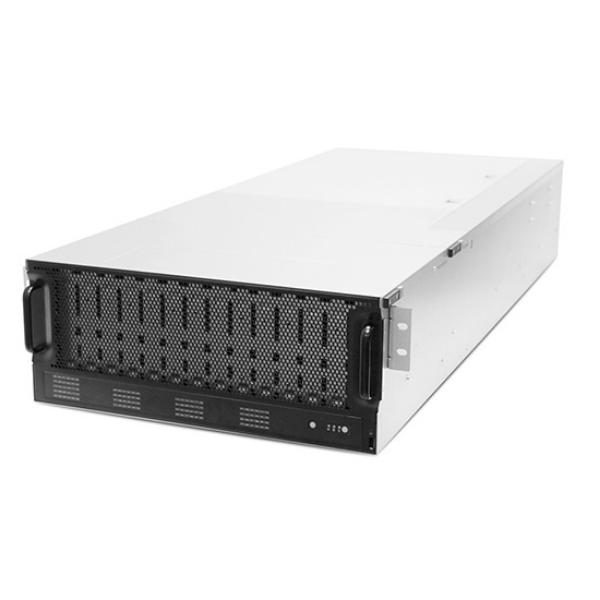

PolyStor 4102A-s

4U 102 x SAS/SSD up to 1428TB (1.4PB) Top Load Storage Server

Featured Highlights

Dual Intel® Xeon® Scalable Processors
Up to 1TB 12 Channel DDR4 ECC memory
Up to 8 10Gbit Copper/SFP+ or Fibre Channel Network I/O
Support 102 x 3.5" or 2.5" Top Loading SAS3 12Gb/s Hot-swappable HD/SSD
Broadcom (LSI) Hardware SAS-12G RAID Accelerator Controller with Expander Backplan
Hot-swappable Expanders with redundant for Remote System Power on/off and monitoring
Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
High Performance up to 20+ GB/s data transfer rate
Tool-less HDD tray with HDD LED indicator
SCSI Enclosure Services (SES 3.0) compliant
Flexible to configure up to 4 Hosts HDD Zoning and individual HDD power cycling
Intelligent Enclosure and Cable Management
2000W 1+1 Redundant Platinum 80+ Power Supply
OS: Windows Server, Solaris, Linux, FreeBSD, NAS: OpenFiler, FreeNAS
Application: Big Data Centers, Enterprise Archiving, Cloud Storage, Disaster Recovery.



Promotional Model
4U / Dual Intel® Xeon® / 102x20TB /

Promotional Price      $69,999.00

SKU: PolyStor 4102A-s
Product specifications
Processor

• Dual Intel® Xeon® Scalable Processors Gold, Silver and Brown Series
• 2 x LGA-3647 Sockets

Chipset

• Intel® 620 Chipset

Memory

• 16 x DIMM Sockets
• Dual 6-Channel ECC DDR4 system memory
• Up to 1TB Memory

OS and Storage Manager

• Linux OS and NAS/iSCSI WEB based Manager
• Optional: Solaris, Windows Server, MS Storage Server, VMware, FreeBSD, Other Open Soruce Linux.

File System

• XFS, EXT3, EXT4
• Optional: ZFS, NTFS, or any file system supported by the x86 platform

Network I/O

• 2 x Intel 10Gbit SFP+ and 2 x Intel i350 Gigabit RJ45 LAN ports
• Optional: Additional Gigabit LAN, 10Gbit Ethernet, Fibre Channel for SAN (can be mixed)
• EDR, FDR or 40Gbit QDR Infiniband or Ethernet Over IB

Network Service

• DHCP client/server (default is DHCP client/static)
• Network Protocol: CIFS/SMB, NFS, FTP
• iSCSI / NAS / SAN (Can be mixed)

Management Interface

• Web GUI
• E-mail notification
• Local Host Access via VGA and Keyboard

Expansion Slot

• 1 x PCIe 3.0 16x slot for OCP Mezzanine V2.0 (Type 2: 1x QSFP or 2 x QSFP+)

Remote Boot Function

• Requires NIC with PXE support on client
• IPMI 2.0 with dedicated RJ45 Port
• Power on/off, system reset + USB

File Sharing

• Authorizes users to access shared folder using passwords (by default, there is one "Public" shared folder)

Access Control

• Allows users to access shared files for "Read Only" or "Read/Write"

Storage/RAID

• 102 x 3.5" Hot-swap SAS/SATA and 2 x 2.5" OS How-swap drive bays
• Supports SAS-12G, SAS-6G, SATA-6G Hard Drive or SSD
• Hardware Accelerated RAID Controller with Expander
• Supports RAID 0, 1, 5, 6, 10, 50, 60 with hot spare drives
• Supports 3.5" or 2.5" hard drive or SSD (Can be mixed)
• Supports PCIe SSD Module

I/O

• 2 x USB 3.0 Type-A rear connectors, 1 x USB 2.0 and 1 x USB 3.0 Headers
• 1 x AST2500 VGA port, 1 x Serial COM port, 1 x Serial Header
• 4 x SATA-6G/s (SFF-8643), 2 SATA-6G/s SATA ports
• SAS/ SATA Lewisburg PCH on-chip solution
Backplane:
• 3 x 24-port SAS-12G with 36-Phy expander and 2 x 8i SAS Slimline connectors
• 1 x 30-port SAS-12G with 40-Phy expander and 2 x 8i SAS Slimline connectors

Client Support

• MS Windows® 10, 8, 7, XP and Windows Server, Linux , FreeBSD, Solaris and Mac
• Snap Shot Backup and Recovery Client Support
• Active Directory, Rsync are supported

Remote Controls

• Power on/off, system reset + USB
• IPMI, KVM over IP, Remote Power On/Off is supported

Indicators

• Power, LAN and HDD LEDs

Cooling

• 3 x 40 x 56mm hot-swap dual rotor fans for MB, 8 x 60 x 56mm dual rotor fans for Drives

Power Supply

• 2000W 1+1 redundant 80Plus Platinum power supply (AC input: 200-240V)

Operating Temperature

• From 0 °C to 40 °C (32°F to 104 °F)

Non-Operating Temperature

• From -10 °C to 60 °C (14°F to 140 °F)

Operating Humidity

• From 5% to 90% non-condensing relative humidity

EMI Safety

• CE/FCC

Dimensions

• 4U Rackmount Chassis
• 41" tool-less slide rail included
• Option: Cable Management Kit
• Dimensions: 19" W x 7" H x 41.3" D (434 x 175 x 1050mm)
• Weight: 220 lb. (100kg)
• Packaging: 468mm(18.4"H) x 616mm(24.3"W) x 1328mm(52.3"D),105kg (230 lb.) net

Warranty

• SAS, SATA-E Hard Driver , SSD carry 5 year
• Base system:3 year standard parts and depot labor;lifetime toll free phone support.
• Optional:3 or 5-year(total years) extended warranty with advanced parts replacement service.
• Optional:7+year extended warranty service available.
• On-site service is available with additional cost.

*
*
*
