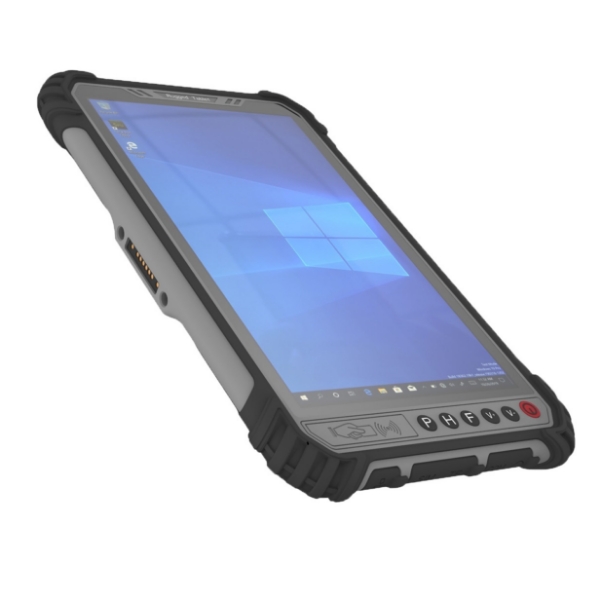

RT809S

8 Inch, Intel® I5-8200Y /Celeron N5100 Tablet with NFC + Fingerprint Reader, SIM, Micro card

Featured Highlights
	Intel® Core™ I5-8200Y Dual-Core 3.9GHz/ Celeron™ N5100 Quad-Core 2.8GHz
	Intel® Amber Lake Y Platform (SOC)
	Intel® UHD Graphics 615
	8 GB Memory, ROM 256GB SSD
	Expansion Module: RJ45, DB9, USB2.0, QR Scanner
	3 USB 3.0, 1 Type-A, Mirco SD and SIM card readers
	USB HD Audio Sound
	AC100V-240V, 50Hz/60Hz, DC19V/3.42A (UL/CE/FCC Certified)
	OS Support: Windows 10 Pro (Home, IoT) 64bit, Linux, FreeBSD
	Applications: POS/Kiosk, Business Computing, Thin Client, etc.

SKU: NB04-08RS809T

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ I5-8200Y Dual-Core 3.9GHz/ Celeron™ N5100 Quad-Core 2.8GHz Chipset • Intel® Amber rLake Y series SOC
Memory • DDR3L 8GB up to 16GB Video Output • 8 inch IPS 1920 x 1200 FHD
Graphics • Intel® UHD Graphics 615 • 1 x HDMI® Type-A Expansion capabilities • Optional Module: • Fingerprint Acquisition • 2D Scanner • High Precision GPS • UHF RFID
Storage • 256G SATA SSD Audio • HD Audio
Network • 802.11ac/n/g Dual frequency 2.4G+5G WiFi • BT 4.2 I/O • Camera (Front 5.0M+ Rear 13.0M Auto Focus ) • 1 x Mirco SD Card Reader • SIM Card Slot • 1 x RJ45 • 1 x HDMI Type-A • 3 x USB 3.0 • 1 standard earjack
Environment • Working temperature: -20 °C to 60 °C • Storage temperature: -30 °C to 70 °C • Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge • Humidity: 95% Non-Condensing Chassis • Dimensions: 234×144×16mm • Weight: 2 lb.
Power Supply • Built in Lithium-ion polymer battery, 7.6V/5000mAh OS Support • Windows 10, IoT, Linux, • Customization service is available
Applications • POS/Kiosk, Business Computing, Thin Client, etc.

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Core™ I5-8200Y Dual-Core 3.9GHz/ Celeron™ N5100 Quad-Core 2.8GHz Chipset • Intel® Amber rLake Y series SOC
Memory • DDR3L 8GB up to 16GB Video Output • 8 inch IPS 1920 x 1200 FHD
Graphics • Intel® UHD Graphics 615 • 1 x HDMI® Type-A Expansion capabilities • Optional Module: • Fingerprint Acquisition • 2D Scanner • High Precision GPS • UHF RFID
Storage • 256G SATA SSD Audio • HD Audio
Network • 802.11ac/n/g Dual frequency 2.4G+5G WiFi • BT 4.2 I/O • Camera (Front 5.0M+ Rear 13.0M Auto Focus ) • 1 x Mirco SD Card Reader • SIM Card Slot • 1 x RJ45 • 1 x HDMI Type-A • 3 x USB 3.0 • 1 standard earjack
Environment • Working temperature: -20 °C to 60 °C • Storage temperature: -30 °C to 70 °C • Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge • Humidity: 95% Non-Condensing Chassis • Dimensions: 234×144×16mm • Weight: 2 lb.
Power Supply • Built in Lithium-ion polymer battery, 7.6V/5000mAh OS Support • Windows 10, IoT, Linux, • Customization service is available
Applications • POS/Kiosk, Business Computing, Thin Client, etc.
