 Think Big. Go Small. Eco-Smart Computing

U11FL2

11th Gen. Tiger Lake, Iris® Xe 8K GPU 4 Display, 2HDMI 2.0+2DP 1.4, 2LAN RS232/RS485+SIM
Featured Highlights
Intel® Core™ i7/i5/i3/Celeron®/Pentium®-u Processor
Intel® Iris® Xe Graphics, 2 DP 1.4 + 2 HDMI 2.0
2 x DDR4 SO-DIMM for up to 64GB Memory
SATA-6Gb/s, M.2 SSD/NVMe
1 MiniPCIe, 3 M.2 Slots
2 x Gigabit LAN + M.2-WiFi+M.2-4G
2 USB 3.0, 6 USB 2.0,1 Type-C
7.1 ALC897 Audio Sound
DC12V or DC19V 60W Power Adapter(UL/CE/FCC Certified)
OS Support: Windows 10/11, IoT, Linux
Applications: Digital Signage, Videowall, Network Security, POS/Kiosk, Edge AI, OpenVino, Audio/Video PC, Set Top Box, Mini PC etc.


SKU: U11D/U11F
Product specifications
Processor

• Intel® Core™ i7-1185G7 3.00/4.80GHz 4Cores 8Threads 12M 12/28W
• Intel® Core™ i7-1165G7 2.80/4.70GHz 4Cores 8Threads 12M 12/28W
• Intel® Core™ i5-1145G7 2.60/4.40GHz 4Cores 8Threads 8M 12/28W
• Intel® Core™ i5-1135G7 2.40/4.20GHz 4Cores 8Threads 8M 12/28W
• Intel® Core™ i3-1125G4 2.00/3.70GHz 4Cores 8Threads 8M 12/28W
• Intel® Core™ i3-1115G4 3.00/4.10GHz 2Cores 4Threads 6M 12/28W
• Intel® Pentium® Gold 7505 2.00/3.50GHz 2Cores 4Threads 4M 15W
• Intel® Celeron® 6305 1.80GHz 2Cores 2Threads 4M 15W

Chipset
• Intel® Tiger Lake-u Platform (SOC)
Graphics

• Intel® Iris® Xe Graphics
• Support 4 Display
• 2 x DP 1.4  8K 60Hz Graphics Port
• 2 x HDMI® 2.0 4K 60Hz Graphics Port

Memory
• 2 x DDR4 SO-DIMM
• 4267/3200/2667MHzMHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 32GB
Network

• 1 x Intel® i211 Gigabit (10/100/1000 Mb/s) LAN
• 1 x Intel® i219 Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 for WiFi+BT or Other Module
• 1 x M.2-2242 for 4G-LTE Module Pair with SIM Card
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x full-length Mini-PCIe with PCIe Intel® Movidius™ Myriad™ X support
• 1 x M.2 2230 for WiFi+BT or Other Module
• 1 x M.2-2242 for 4G-LTE Module Pair with SIM Card
• 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe 4x NVMe)

Storage

• 1 x Internal 2.5" SATA drive Bay (Notebook Drive connector with Power+SATA)
• 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe 4x NVMe)

Audio

• Realtek® ALC897 8-channel (7.1)
• 2 x 3.5mm analog stereo audio jack(Front) (For Microphone and Audio-Out)

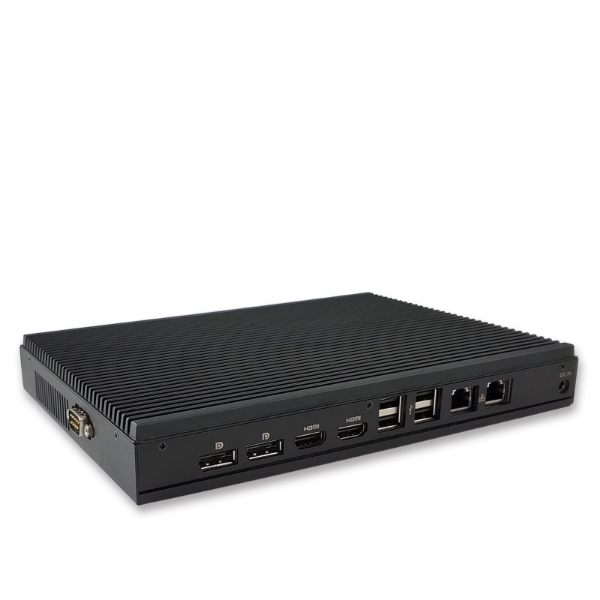

Back Panel I/O

• 4 x USB 2.0 ports
• 2 x DP 1.4
• 2 x HDMI® 2.0 ports
• 2 x LAN ports
• 1 x DC-In Power Connecter

Internal I/O

• 1 x RS232 Serial COM Header

Other I/O

• 2 x USB 2.0 ports (Front/White)
• 2 x USB 3.2 ports (Front/Black)
• 1 x Type-C USB 3.2 port (for Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions) (Front)
• 1 x Serial DB9 COM port (Side/RS485)
• 3 x 3.5mm Audio jacks (Front)

Function
• 1 x TPM Header
System BIOS
• AMI® UEFI 128MBit / Legacy BIOS
• Watchdog supported
Systemboard

Small Form Factor
Back I/O

Chassis

• U11FL2: Booksize-iF Slim Fanless enclosure 9.25"(W) x 6.8"(D) x 1.3"(H) (235 x 173 x 33mm)
• U11L2: Slim version with blower Fan 9.25"(W) x 6.8"(D) x 1.1"(H) (235 x 173 x 28mm)
• Net Weight: 3lb (net) 6 lb.(gross with packaging)
• Color: Black (other color and custom logo are available with MOQ orders)

Power Supply

• Power: DC12V or DC19V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 10/11, IoT, Linux

Application

• Digital Signage, Videowall, Network Security, POS/Kiosk, Edge AI, OpenVino, Audio/Video PC, Set Top Box, etc.

Environment

• Operating Temperature: -20 to +50C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
