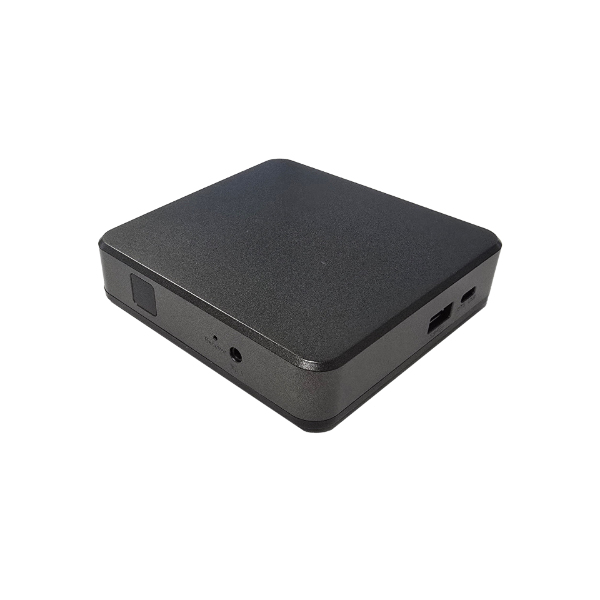

X36-mini

QuadCore ARM® Cortex®-A55, Android 13 /Linux , HDMI 2.0, Type-C, 4G-LTE Modem sim slot
Featured Highlights
ARM® Cortex®-A55 64-bit Processor
RK3566 SoC
Mali™ G52-2EE GPU, HDMI 2.0 4K 60Hz
2GB/4GB DDR4 Memory, 16GB/32GB/64G/128G eMMC Storage
RJ45 LAN, WiFi+BT
USB 3.0, 2 USB 2.0, Type-C OTG
USB HD Audio with 2 x 3.5mm Jacks
Power Supply: DC12V 2A Input
OS Support: Android 13 ,11, Linux, Custom Firmware Imaging Services available
Applications: Set Top Box, Audio Player, Digital Signage, IPTV, etc.


SKU: X36-mini
Product specifications
Processor

• ARM® Cortex®-A55 4Core 64-bit up to 1.80GHz

Chipset

• RK3566 SoC

Graphics

• Quad-Core Mali™ G52-2EE GPU
• 1 x HDMI® 2.0, 4K 60Hz Video port

Memory

• 2GB DDR4 (Option: 4GB or 8GB) (built-in, non-changeable)

Network

• 1 x RJ45 (10/100/1000 Mb/s) Ethernet
• WIFI-5 802.11 a/b/g/n/ac (Optional WIFI-6 802.11 a/b/g/n/ac/ax )
• Bluetooth 4.2 (Optional BT 5.4)
• Full size Mini-PCIe slot supports 4G-LTE modem with sim slot

Storage

• 16GB eMMC Flash Internal Storage (Optional 32GB, 64GB, 128GB or 250GB)
• 1 x TF (MicroSD) reader, supports 256GB+ MicroSD/TF Card

Audio

• Everest ES8323S Audio chip
• 2 x 3.5mm Analog Stereo Audio jacks

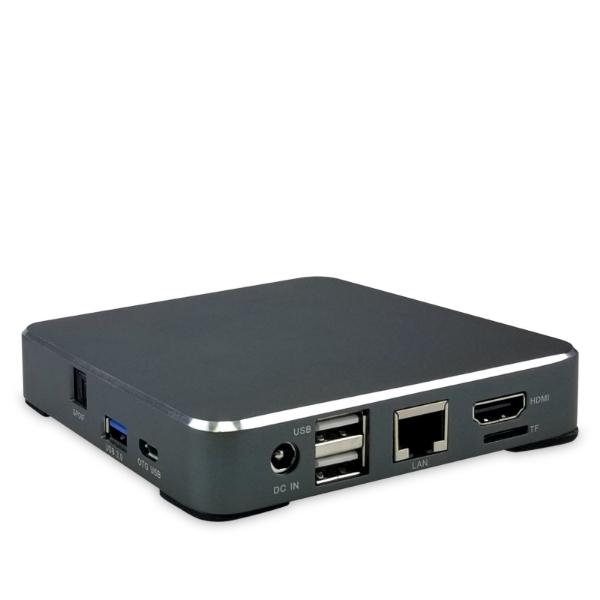

Back Panel I/O

• 2 x USB 2.0 ports
• 1 x HDMI® 2.0 port
• 1 x LAN port
• 1 x TF slot
• 1 x DC-In 2.5mm Power Connector

Other I/O

• 1 x USB 3.0 port (Side)
• 1 x Type-C OTG port (Side)
• 2 x 3.5mm Audio jacks (Front)
• Optional GPIO, UART Headers
• Internal USB 2.0 Headers
• Optional LVDS or eDP headers.

System BIOS
• Watchdog supported
Chassis

• NUC-X Tiny Chassis
• Dimensions: 4.10"(W) x 4.10"(D) x 0.99"(H), Weight: 0.7 lb. (Net)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA/wall mount brackets

Power Supply

• Power: DC12V 2A 24W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Powered by PoE supported
• Energy Star Compliance, Idle mode at <1W

OS Support

• Android 13,11, Linux
• New revision Android upgradeable
• Custom Firmware System Imaging Services Available

Application
• Set Top Box, Digital Signage, IPTV, Traffic Controller, etc.
• Embedded-Longevity
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
