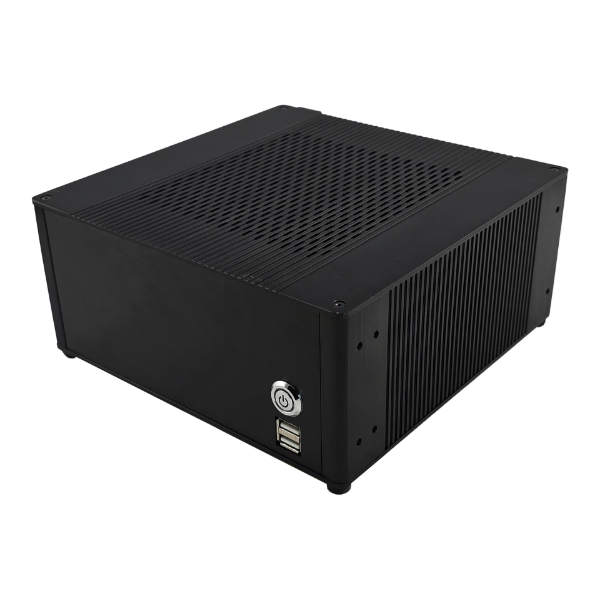

500B/500R with RISER

500B = Low Profile Slot, 500R = RISER Slot

Featured Highlights
	Dimensions: 8.1"(L) x 8.1"(W) x 3.5"(H)
	1 x 2.5" drive bay, optional 2nd drive bay available with limited configuration.
	RISER or Low-profile slot option
	DC P/S
	Color: Black (Custom colors available with special order)
	Applications: Vehicle/Boat PC, Set Top Box, Digital Signage, Network Appliance, Traffic Control, Kiosk, POS, Surveillance.

SKU: 500B

Supported Models
Request for Info

Model	Processor	Chipset	Memory	Graphics	Network	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio

J1900AE	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	4 R + 3H	1 R	1 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662
J1900AEL2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek\RTL8111F	2 R+2 H	1 R	2 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662 7.1 ALC892
J1900AC6	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	3 R+1 F+2 H	1 R	1 HDMI+1 VGA+1 LVDS/H	MiniPCIe-F	TPM+1xPS/2/H	5.1 ALC662
J4125 - J5040AEL2	J4105	Gemini Lake	2 DDR4SO	Intel UHD 600	1 Realtek+1 Intel	1 R+4 H	2 R	1 HDMI+1 DP+1 eDP/H+1 LVDS/H	PCIe x2, 2 M.2m, MiniPCIe full size	GPIO	5.1 ALC662
Slim-7000AEL2	i5-7200u	Kaby Lake-u	1 DDR4SO	Integrated	2 Realtek\RTL8111F	4 H	4 R	1 DP+1 HDMI+1 eDP/H\LVDS	PCIe 4x	GPIO+LPT	5.1 ALC662
Slim-7000A2/6000A2	i5-7200u	Kaby Lake-u Skylake-u	1 DDR4SO	Integrated	1 Realtek\RTL8111F+option:1 Realtek\RTL8111F	option 2 R+2 H	2 R	2 HDMI/R+1 eDP/H\LVDS	1 MiniPCIe		5.1 ALC662
i5-6267FL	i5-6267u	Skylake-u	2 DDR3SO	Intel Iris 550	1 Realtek\RTL8111F	2 R+4 H	2 R+2 H	1 HDMI+1 VGA+1 LVDS		1xPS/2+LPT+GPIO	5.1 ALC662
U10A/U10AL2	i7-10710U	Comet Lake-u	2 DDR4SO	10th Gen. UHD	1 Realtek\RTL8111H+option:1 Realtek\RTL8111H	3 H	4 R+2 H	1 DP\VGA+1 HDMI+1 LVDS/H		TPM	5.1 ALC662
HM170L4	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	2 H+2 H/R	2 R+4 H	1 DP/H+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
HM170L2/AEL2	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	2 H+2 H/R	2 R+4 H	1 DP+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
H310L4	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	4 Intel\i211	4 H	2 R+2 F	1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
H310AEL2	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	2 Intel\i211	4 R+2 H	2 R+2 F	1HDMI+1DP+1VGA/H+1LVDS/H	PCIe 4x	TPM	5.1 ALC662
B365AL2	6/7/8/9th Socket 1151	B365	2 DDR4SO	Integrated	2 Realtek\RTL8111H	4 H	4 R+2 H	1 DP+1 HDMI+1 LVDS/H		TPM	2.1 ALC269
H110L2V	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	2 Realtek\RTL8111H	2 R+4 H	4 R	2 DP+1 VGA+1 HDMI/H	MiniPCIe+PCIe 16x		5.1 ALC662
H110A1/i1000A10	6/7th Socket 1151	H110	2 DDR4SO	Intel HD 530 Intel HD 630	1 Realtek	4 H	4 R	1 HDMI+1 VGA+1 LVDS	MiniPCIe		7.1 ALC887
Q170A2-3HDMI	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	4 H	4 R	2 HDMI+1 HDMI2.0+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
B150V3	6/7th Socket 1151	B150	2 DDR4	Intel HD 530 Intel HD 630	1 Realtek\RTL8111H	2 R+4 H	4 R	2 DP+1 HDMI	MiniPCIe+PCIe 16x		5.1 ALC662
H8100L2/H8100L3	Socket 1150 Haswell	H81	2 DDR3	Intel HD 5000	2 Realtek	4 R+1 H	2 R	1 HDMI+1 DVI+1 VGA	1 MiniPCIe+PCIe 16x	1xPS/2	5.1 ALC662
Q370L3E2	8/9th Socket 1151 vPro	Q370	2 DDR4SO	Intel UHD 630	1 Intel\i219V+2 Intel\i210AT	2 R+4 H	4 R+1 H	2 DP+1 DVI+1 LVDS/H	1 PCIe 16x+1 PCIe 4x	GPIO+LPT	7.1 ALC888
X570E	Socket AM4 Ryzen 3rd	AMD X570	2 DDR4	Radeon Vega	1 Intel\i211AT	2 H	4 R+2 H	1 DP+2 HDMI2.0	PCIe 16x		7.1 ALC1220
C3338L4	Atom-C (BGA-1310)	Denverton C3000	2 DDR4 128G/1Ch	Aspeed AST2400	4x1Gbit Intel LAN	2 R	1 H	IPMI 2.0 (AST2400)	1x4 3.0	TPM	option
E3-1585L4	Xeon® E3-1585V5	C236 Express Chipset	4 DDR4	Iris® 6200 Pro Graphics	3 x i210+1 x i219LM LAN	1 H	2 R+1 H	1 HDMI+1 VGA	PCIe x16		7.1 ALC887
2550L2D-MxPC	D2550	NM10	2 DDR3SO	Intel HD 3650	2 Broadcom	4 R+2 H	2 R	1 HDMI+1 VGA	PCIe 1x	2xPS/2	5.1 ALC662
2600L2	N2600	NM10	1 DDR3SO	Intel HD 3600	2 Realtek	4 R+2 H		1 VGA	2 MiniPCIe+PCI	2xPS/2	5.1 ALC662
B150L2-Customize	6/7th Socket 1151	B150	2 DDR4	Intel HD 530 Intel HD 630	2 Intel	2 R+2 H	4 R+2 H	2 HDMI	MiniPCIe+PCIe 16x		7.1 ALC887
