 Think Big. Go Small. Eco-Smart Computing

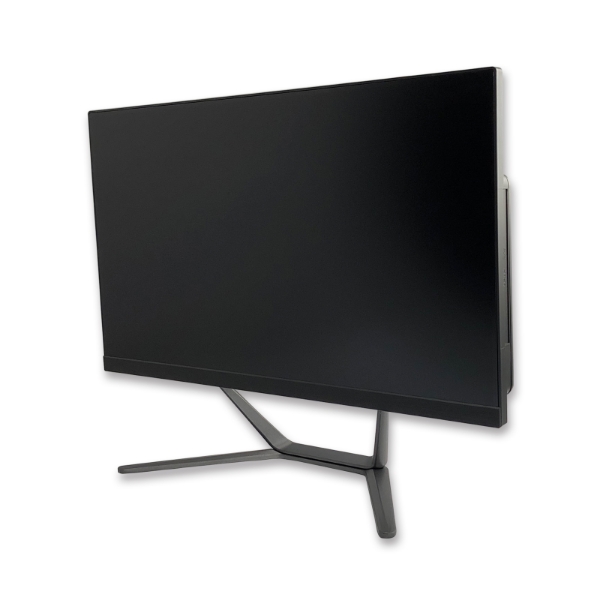

AIO-JA215C

All-in-one 21" FHD IPS, Intel® Celeron® Gemini Lake, UHD Graphics 600, 6 USB + 3 COM
Featured Highlights
Intel® Celeron® J4125 Processor
Intel® Gemini Lake Platform (SOC)
Intel® UHD Graphics 600, HDMI+VGA+LVDS/h+2 eDP/h
4GB DDR4 SO-DIMM
64GB mSATA SSD, SATA-6Gb/s
Gigabit LAN, MiniPCIe(H)-WiFi/BT
2 USB 3.0, 4 USB 2.0, 3 COM/h
DC12V Power Adapter (UL/CE/FCC Certified)
Applications: Home/Office or School PC, Library, Signage, Healthcare.



MOQ maybe required

SKU: AIO-JA215C
Model Processor Chipset Memory Graphics Network USB2.0 USB3.0 Ports Expansion OtherIO Audio
H410A1 10th Socket 1200 H410 2 DDR4SO Intel UHD 630 1 Reltek\RTL8111F 4R 2R+2F 1 DP + HDMI LPT/S 5.1 ALC662
H310A1 8/9th Socket 1151 H310 1 DDR4SO Intel UHD 630 1 Intel\i219V 4 H 4 R+2 H 1 HDMI+1 VGA/H+1 LVDS/H 5.1 ALC662
Q170A 6/7th Socket 1151 vPro Q170 2 DDR4SO Intel HD 530 Intel HD 630 2 Intel 4 H 4 R 1 DP+1 HDMI+1 VGAH+1 LVDS 2 MiniPCIe+PCIe 4x GPIO+TPM 7.1 ALC887
Slim-H110A2 6/7th Socket 1151 H110 1 DDR4SO Intel HD 530 Intel HD 630 1 Realtek\RTL8111F 4 H 4 R 1 HDMI+1 VGA+1 LVDS 1 MiniPCIe+1 MiniPCIe-F 5.1 ALC662
H110A1/i1000A10 6/7th Socket 1151 H110 2 DDR4SO Intel HD 530 Intel HD 630 1 Realtek 4 H 4 R 1 HDMI+1 VGA+1 LVDS MiniPCIe 7.1 ALC887
U10A/U10AL2 i7-10710U Comet Lake-u 2 DDR4SO 10th Gen. UHD 1 Realtek\RTL8111H+option:1 Realtek\RTL8111H 3 H 4 R+2 H 1 DP\VGA+1 HDMI+1 LVDS/H TPM 5.1 ALC662
HM170L2/AEL2 i5-6300HQ HM170 2 DDR4SO Intel HD 530 1 RJ45+option:1 RJ45 2 H+2 H/R 2 R+4 H 1 DP+1 HDMI+1 VGA+1 LVDS/H 1x MiniPCIe+1x PCIe 3.0x16 1xPS/2/H+TPM+GPIO 5.1 ALC662
J4125 - J5040AEL2 J4105 Gemini Lake 2 DDR4SO Intel UHD 600 1 Realtek+1 Intel 1 R+4 H 2 R 1 HDMI+1 DP+1 eDP/H+1 LVDS/H PCIe x2, 2 M.2m, MiniPCIe full size GPIO 5.1 ALC662
N4200AEL2 N4200 Apollo Lake 2 DDR3SO Intel HD 505 2 Intel\i211AT 5 R 4 R 1 HDMI+2 DP+1 LVDS MiniPCIe+PCIe 1x GPIO+TPM 5.1 ALC662
i2311 6/7/8/9th Socket 1151 H310C 1 DDR4SO Nvidia GT1030 1 Realtek\RTL8111H 2 H 4 R 1 HDMI+1 LVDS/H 5.1 ALC662
Slim-A320A Socket AM4 Ryzen 3rd AMD A320 2 DDR4SO Radeon Vega 1 Realtek\RTL8111H 5 H 4 R 1 HDMI+1 LVDS/H 2.1 ALC269
Q470L2G 11th/10th Socket 1200 Q470 2 DDR4SO Intel UHD 1 Intel\i219V+1 Intel\i211 4 H 4 R+2 F 1 DP+1 HDMI+1 HDMI2.0+1 eDP\LVDS/H+VGA header (co-lay with eDP) 1 MiniPCIe+1 PCIe 16x GPIO+TPM 5.1 ALC662
U11FL2 i7-1180G7 Tiger Lake-u 2 DDR4SO Intel Iris Xe 1 Intel\i211+1 Intel\i219 2 R+4 F 2 R 2 DP+2 HDMI2.0 1 MinPCIe TPM 7.1 ALC897
10A-N2600Q N2600 NM10 2 DDR3SO Intel HD 3600 1 Realtek 3 R+2 H 1 HDMI+1 VGA+1 LVDS PCIe 1x 5.1 ALC662
N2600-300R N2600 NM10 2 DDR3SO Intel HD 3600 1 Realtek\RTL8111E 3 R+1 F+2 H 1 HDMI+1 VGA 2 MiniPCIe+PCIe 1x 1xPS/2 5.1 ALC662
J1900AL2 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 2 Realtek 1 R+1 F+2 H 1 R 1 HDMI+1 VGA+1 LVDS/H MiniPCIe-F TPM+GPIO+1xPS/2/H 5.1 ALC662
J1900AC6 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 1 Realtek 3 R+1 F+2 H 1 R 1 HDMI+1 VGA+1 LVDS/H MiniPCIe-F TPM+1xPS/2/H 5.1 ALC662
J1900AE J1900 Bay Trail 1 DDR3SO 7th Gen. HD 1 Realtek 4 R + 3H 1 R 1 HDMI+1 VGAH+1 LVDS/H MiniPCIe-F+PCIe 1x GPIO 5.1 ALC662
J1900AEL2 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 2 Realtek\RTL8111F 2 R+2 H 1 R 2 HDMI+1 VGAH+1 LVDS/H MiniPCIe-F+PCIe 1x GPIO 5.1 ALC662 7.1 ALC892
N3350AEL2 N3350 Apollo Lake 2 DDR3SO Intel HD 500 2 Realtek 4 H 4 R 1 HDMI+1 VGA+1 LVDS MiniPCIe+PCIe 1x LPT+GPIO 7.1 ALC887
N3050A1 N3050 Braswell-u 2 DDR3SO 8th Gen. HD 1 Realtek 3 R+3 H 1 R 1 HDMI+1 VGA+1 LVDS/H 2 MiniPCIe GPIO+LPT 7.1 ALC892
N3150A1 N3150 Braswell-u 2 DDR3SO 8th Gen. HD 1 Realtek 3 R+3 H 1 R 1 HDMI+1 VGA+1 LVDS/H 2 MiniPCIe GPIO+LPT 7.1 ALC892
Slim-7000AEL2 i5-7200u Kaby Lake-u 1 DDR4SO Integrated 2 Realtek\RTL8111F 4 H 4 R 1 DP+1 HDMI+1 eDP/H\LVDS PCIe 4x GPIO+LPT 5.1 ALC662
Slim-7000A2/6000A2 i5-7200u Kaby Lake-u Skylake-u 1 DDR4SO Integrated 1 Realtek\RTL8111F+option:1 Realtek\RTL8111F option 2 R+2 H 2 R 2 HDMI/R+1 eDP/H\LVDS 1 MiniPCIe 5.1 ALC662
Slim-7000e4 i7-7500u Kaby Lake-u Skylake-u 1 DDR4SO 7th Gen. HD 1 Realtek/F\RTL8111F 4 R 6 R 2 HDMI/F 4 MiniPCIe GPIO 5.1 ALC662
Slim-7000L4 i7-7660u Kaby Lake-u 1 DDR4SO Intel HD 610 4 Intel 2 R+2 H 2 R+2 H 1 HDMI MiniPCIe+PCIe 1x 1xPS/2+TPM 5.1 HDMI
Slim-3865L4 3865u Kaby Lake-u 1 DDR4SO Intel HD 610 4 Intel 2 R+2 H 2 R+2 H 1 HDMI MiniPCIe+PCIe 1x 1xPS/2+TPM 5.1 HDMI
i5-6267FL i5-6267u Skylake-u 2 DDR3SO Intel Iris 550 1 Realtek\RTL8111F 2 R+4 H 2 R+2 H 1 HDMI+1 VGA+1 LVDS 1xPS/2+LPT+GPIO 5.1 ALC662
i5-6200FL2 i5-6200u Skylake-u 2 DDR3SO Intel HD 520 2 Realtek 2 H 2 R+2 H 1 HDMI+1 DVI 2 MiniPCIe 5.1 ALC662
i5-6200L2B i5-6200u Skylake-u 2 DDR3SO Intel HD 520 2 Realtek 2 H 2 R+2 H 2 HDMI 2 MiniPCIe 5.1 ALC662
i5-6200SL i5-6200u Skylake-u 2 DDR3SO Intel HD 520 1 Realtek 2 R+2 H 2 R+2 H 1 HDMI+1 DVI 2 MiniPCIe 5.1 ALC662
HM170L4 i5-6300HQ HM170 2 DDR4SO Intel HD 530 1 RJ45+option:1 RJ45 2 H+2 H/R 2 R+4 H 1 DP/H+1 HDMI+1 VGA+1 LVDS/H 1x MiniPCIe+1x PCIe 3.0x16 1xPS/2/H+TPM+GPIO 5.1 ALC662
i2310 i7-6700HQ QM170 2 DDR4SO Nvidia GTX960M 1 Realtek 2 R 2 R+2 F 1 HDMI+1 DP+1 Type-C TPM Azalia Codec
H310L4 8/9th Socket 1151 H310 Q370 2 DDR4SO Intel UHD 630 4 Intel\i211 4 H 2 R+2 F 1 VGA MiniPCIe+PCIe 4x GPIO 5.1 ALC662
H310AEL2 8/9th Socket 1151 H310 Q370 2 DDR4SO Intel UHD 630 2 Intel\i211 4 R+2 H 2 R+2 F 1HDMI+1DP+1VGA/H+1LVDS/H PCIe 4x TPM 5.1 ALC662
B365AL2 6/7/8/9th Socket 1151 B365 2 DDR4SO Integrated 2 Realtek\RTL8111H 4 H 4 R+2 H 1 DP+1 HDMI+1 LVDS/H TPM 2.1 ALC269
H110L2A/i1000A13 6/7th Socket 1151 H110 2 DDR4 Intel HD 530 Intel HD 630 2 Realtek 6 H 2 R 1 HDMI+1 VGA MiniPCIe+PCIe 4x GPIO 5.1 ALC662
H110AEL2/i1000A12 6/7th Socket 1151 H110 2 DDR4SO Intel HD 530 Intel HD 630 1 Intel\i219V+1 Intel\i211AT 4 H 4 R 1 DP+1 HDMI+1 VGAH MiniPCIe+PCIe 4x GPIO 7.1 ALC887
Q170A2-3HDMI 6/7th Socket 1151 vPro Q170 2 DDR4SO Intel HD 530 Intel HD 630 2 Intel 4 H 4 R 2 HDMI+1 HDMI2.0+1 LVDS 2 MiniPCIe+PCIe 4x GPIO+TPM 7.1 ALC887

Support Models

Product specifications
Processor

• Intel® Celeron® J4125 2.00/2.70GHz 4Core 4Threads 4M 10W

Chipset

• Intel® Gemini Lake Platform (SOC)

Graphics

• Intel® UHD 600 Graphics
• 2 x eDP headers
• 1 x LVDS header
• 1 x HDMI® port
• 1 x VGA port

Memory

• 4GB DDR4 Memory
• 1 x DDR4 SO-DIMM
• 2400/2133MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 8GB

Network

• 1 x Gigabit (10/100/1000 Mb/s) LAN
• 802.11ac Dual-Band (2.4/5GHz) WiFi, Bluetooth 4.0
• 1 x MicroSIM slot
• 1 x MiniPCIe Half Size slot (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x MiniPCIe Half Size slot (for Wi-Fi/BT or Other Module)

Storage

• 64GB mSATA SSD Storage
• 1 x SATA 6Gb/s
• 1 x mSATA slot (Taken by SSD module)

Audio

• 2 x 3.5mm Analog Stereo Audio jacks

I/O

• 4 x USB 2.0 ports
• 2 x USB 3.0 ports
• 1 x LAN port
• 1 x HDMI® port
• 1 x VGA port
• 2 x Audio jacks
• 1 x DC-In 2.5mm Power Connector

Video Output

• 21.5" LCD
• FHD 1920*1080

Internal I/O

• 3 x COM headers
• 2 x eDP headers
• 1 x LVDS header
• 1 x USB 2.0 header

Function

• 1 x 4in/4out-GPIO header

System BIOS

• AMI® UEFI / Legacy BIOS

Chassis

• AIO 21" FHD 1920x1080 IPS Chassis
• Dimensions: 19.41"(W) x 1.30"(D) x 11.38"(H)
• Weight: 5.73 lb.
• VESA, wall mount bracket compatible

Power Supply

• Power: DC12V Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 10, Linux

Application

• Home/Office or School PC, Library, Signage, Healthcare.

Environment

• Operating Temperature: -5 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
Product specifications
Processor

• Intel® Celeron® J4125 2.00/2.70GHz 4Core 4Threads 4M 10W

Chipset

• Intel® Gemini Lake Platform (SOC)

Graphics

• Intel® UHD 600 Graphics
• 2 x eDP headers
• 1 x LVDS header
• 1 x HDMI® port
• 1 x VGA port

Memory

• 4GB DDR4 Memory
• 1 x DDR4 SO-DIMM
• 2400/2133MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 8GB

Network

• 1 x Gigabit (10/100/1000 Mb/s) LAN
• 802.11ac Dual-Band (2.4/5GHz) WiFi, Bluetooth 4.0
• 1 x MicroSIM slot
• 1 x MiniPCIe Half Size slot (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x MiniPCIe Half Size slot (for Wi-Fi/BT or Other Module)

Storage

• 64GB mSATA SSD Storage
• 1 x SATA 6Gb/s
• 1 x mSATA slot (Taken by SSD module)

Audio

• 2 x 3.5mm Analog Stereo Audio jacks

I/O

• 4 x USB 2.0 ports
• 2 x USB 3.0 ports
• 1 x LAN port
• 1 x HDMI® port
• 1 x VGA port
• 2 x Audio jacks
• 1 x DC-In 2.5mm Power Connector

Video Output

• 21.5" LCD
• FHD 1920*1080

Internal I/O

• 3 x COM headers
• 2 x eDP headers
• 1 x LVDS header
• 1 x USB 2.0 header

Function

• 1 x 4in/4out-GPIO header

System BIOS

• AMI® UEFI / Legacy BIOS

Chassis

• AIO 21" FHD 1920x1080 IPS Chassis
• Dimensions: 19.41"(W) x 1.30"(D) x 11.38"(H)
• Weight: 5.73 lb.
• VESA, wall mount bracket compatible

Power Supply

• Power: DC12V Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 10, Linux

Application

• Home/Office or School PC, Library, Signage, Healthcare.

Environment

• Operating Temperature: -5 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
