 Think Big. Go Small. Eco-Smart Computing

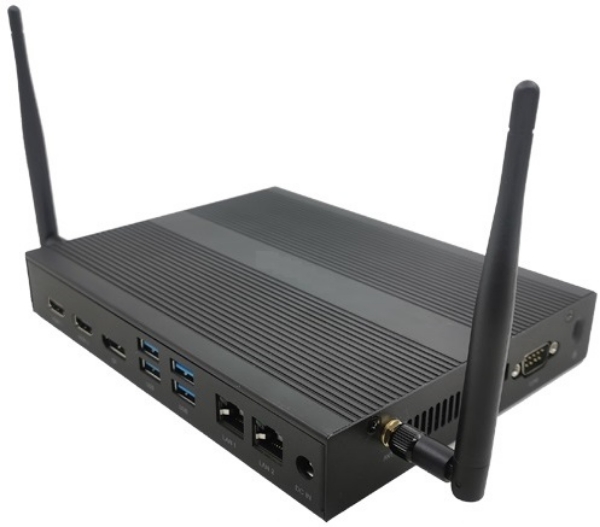

i63C / i65C

1" Slim 10th/8th Gen., UHD620 4K GPU 3 Display, 2HDMI+DP + COM, 6 USB + MiniPCIe + SIM
Featured Highlights
10th/8th Gen. Intel® Core™ i7/i5/i3  u-series Processor
Intel® Comet Lake/Whiskey Lake-u Platform (SOC)
Intel® 10th Gen. UHD/8th Gen UHD Graphics, HDMI 2.0 + HDMI 1.4 + DP 1.2
2 x DDR4 SO-DIMM for up to 64GB Memory
MiniPCIe with SIM for 3G/4G
2 x Gigabit LAN + M.2 WiFi
6 x USB 3.0 + 1 x COM
1 x SATA + M.2 SSD/NVMe
5.1 ALC662 Audio Sound
Power Supply: DC12-19V Input
OS Support: Windows 10, IoT, Linux, FreeBSD
Applications: Set Top Box, Digital Signage, POS/Kiosk, IPTV, Robot, Traffic Controller, Industrial Control/IPC, Medical Equipment, etc.

SKU: i63C
Product specifications
Processor

• 10th Generation Intel® Core™ Comet Lake u-Series FCBGA1528 Processor
• Intel® Core™ i7-10710U 1.10/4.70GHz 6Core 12Threads 12M 15/25W
• Intel® Core™ i7-10610U 1.80/4.90GHz 4Core 8Threads 8M 15/25W, supports vPro®
• Intel® Core™ i7-10510U 1.80/4.90GHz 4Core 8Threads 8M 15/25W
• Intel® Core™ i5-10210U 1.60/4.20GHz 4Core 8Threads 6M 15/25W
• Intel® Core™ i3-10110U 2.10/4.10GHz 2Core 4Threads 4M 15/25W
• Intel® Pentium® Gold 6405U 2.40GHz 2Core 4Threads 2M 15W
• Intel® Celeron® 5205U 1.90GHz 2Core 2Threads 2M 15W
• 8th Generation Intel® Core™ Whiskey Lake u-Series FCBGA1528 Processor
• Intel® Core™ i7-8665U 1.90/4.80GHz 4Core 8Threads 8M 15/25W, supports vPro®
• Intel® Core™ i7-8565U 1.80/4.60GHz 4Core 8Threads 8M 15/25W
• Intel® Core™ i5-8365U 1.60/4.10GHz 4Core 8Threads 6M 15/25W, supports vPro®
• Intel® Core™ i5-8265U 1.60/3.90GHz 4Core 8Threads 6M 15/25W
• Intel® Core™ i3-8145U 2.10/3.90GHz 2Core 4Threads 4M 15/25W
• Intel® Pentium® Gold 5405U 2.30GHz 2Core 4Threads 2M 15W
• Intel® Celeron® 4305U 2.20GHz 2Core 2Threads 2M 15W
• Intel® Celeron® 4205U 1.80GHz 2Core 2Threads 2M 15W

Chipset

• Intel® Comet Lake-u/Whiskey Lake-u Platform (SOC)

Graphics

• Intel® 10th/8th Gen. UHD Graphics (based on CPU), 4K/5K Resolution, HDR 10Bit color
• Support 3 Displays
• 1 x HDMI 2.0 4K 60Hz Graphics port
• 1 x HDMI 1.4, supporting a maximum resolution of 4K @30Hz for HDCP 2.2
• 1 x DP 1.2 4K 60Hz Graphics port

Memory

• 2 x DDR4 SO-DIMM
• 2400/2133MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 1 x Intel® i219 Gigabit (10/100/1000 Mb/s) LAN, suports vPro®/AMT
• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 WiFi+BT Socket (Taken by WiFi+BT Module)
• 1 x MiniPCIe (full size for 3G/4G-LTE modem or Movidius Myriad-X Module)
• 1 x SIM socket (Pair up for MiniPCIe)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2242/2280 (for SATA-6GB/s or PCIe 4x NVMe)
• 1 x MiniPCIe (full size for 3G/4G-LTE modem or Movidius™ Myriad™-X Module)
• 1 x SIM socket (Pair up for MiniPCIe)

Storage

• 1 x SATA 6Gb/s
• 1 x M.2 2242/2280 (for SATA-6GB/s or PCIe 4x NVMe)

Audio

• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm 2 x 3.5mm Analog Audio-In/Out jacks

Back Panel I/O

• 4 x USB 3.0 ports
• 1 x HDMI 2.0 port
• 1 x HDMI 1.4 port
• 1 x DP 1.2
• 2 x LAN ports
• 1 x DC-In 2.5mm Power connector

Other I/O

• 1 x Serial RS232 COM port (Side)
• 2 x USB 3.0 ports (Front)
• 2 x 3.5mm Analog Audio-In/Out jacks (Front)

System BIOS

• AMI®
• Watchdog supported

Chassis

• Slim booksize with Heatpipe copper blower. 7.48"(W) x 5.83"(D) x 1.18"(H)
• Net Weight: 2lb (net) 5 lb.(gross with packaging)
• Optional VESA Bracket Available

Power Supply

• Power Input: DC12-19V Wide Range. 40W to 120W depends on power usage.
• Standard with DC12V 5A 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 10, IoT, Linux, FreeBSD

Application

• Set Top Box, Digital Signage, POS/Kiosk, IPTV, AI Edge, Visual Computing, Medical Equipment, Network Security, IoT, etc.

Environment

• Operating Temperature: -5 to +45 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 10% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance

*
*
*
