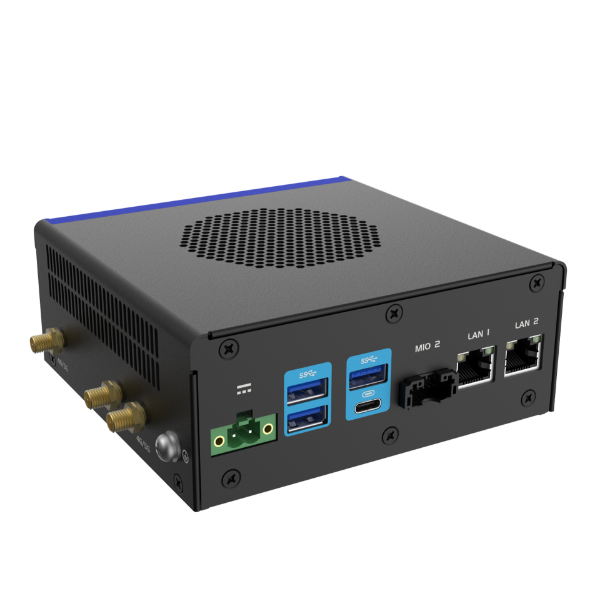

Picture of JSON2L

Picture of JSON2L

Picture of JSON2L

Picture of JSON2L

Picture of JSON2L

Picture of JSON2L

JSON2L

Nano ARM® , NVIDIA® Jetson Orin Nano/NX GPU, Dual LAN+WiFi/BT, SIM, 4 x USB

Featured Highlights
	ARM® Cortex®-A78AE Processor
	Jetson Orin Nano/NX SPUER SoC
	NVIDIA® Jetson Orin Nano/NX GPU, HDMI 2.1
	4GB/8GB/16GB Onboard LPDDR5 Memory
	1 x M.2-2280 for NVME SSD
	2 x Gigabit LAN, Onboard WiFi/BT.
	3 x USB3.0 , 1 x TYPE C ,1 x 12pin M12 Aviation (Rear) ,1 x 28pin Car MIO , 1 x SIM Slot
	Power Supply: DC12V Power Adapter (UL/CE/FCC Certified)
	OS Support: Linux 22.04 (Jetpack 6.2) or newer version
	Applications: Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc.

SKU: JSON2L

Specifications
Request for Info

Product specifications

Processor • ARM® Cortex®-A78AE 6 Core 1.7 GHz • ARM® Cortex®-A78AE 6 Core 2.0 GHz • ARM® Cortex®-A78AE 8 Core 2.0 GHz Chipset • Jetson Orin Nano/NX SPUER SoC
Graphics • 1 x HDMI 2.1 Out，up to 4k@60Hz • Ampere GPU, 4/8/16GB LPDDR5 • Jetson Orin Nano 4GB: 512 NVIDIA® CUDA® cores, 16 Tensor cores, 625Mhz, 7-10w ( 34 TOPS INT8 )； • Jetson Orin Nano 8GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 625Mhz, 7-15w (67 TOPS INT8 )； • Jetson Orin NX 8GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 765Mhz, 10-20w ( 117 TOPS INT8 )； • Jetson Orin NX 16GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 918Mhz,10-25w ( 157 TOPS INT8 )； Memory • 4GB/8GB/16GB LPDDR5 (built-in, non-changeable)
Network • 2 x Gigabit (10/100/1000 Mb/s) LAN • Dual-Band (2.4/5.0GHz) WiFi/BT • 1 x MiniPCIe full size slot (for 4G Wireless Module) • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x M.2 Key-B，for 5G Module (FM650-CN / RM500U-CN） • 1 x M.2 Key-E，for WiFi-6/BT (AP6275P) • 1 x M.2-2280 for NVMe SSD or for other PCIe add-on (like Cambricon MLU220 AI accelerator.)
Storage • 1 x M.2-2280 for NVMe SSD or for other PCIe add-on (like Cambricon MLU220 AI accelerator.) • 1 x TF card reader Back Panel I/O • 3 x USB 3.0 port • 1 x TYPE C port • 1 x HDMI® port • 2 x LAN port • 1 x 12pin M12 Aviation
Other I/O • 1 x 28pin Car MIO(Front) • 1 x HDMI 2.1 ports (Front) • 1 x SIM Slot(Front) Chassis • Nano-Size Sheet-metal, Desktop, wallmount, DIN • Dimensions: 130L x 125W x 50H (mm) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/ wall mount brackets
Power Supply • Power: DC12V Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Ubuntu22.04 (Jetpack6.2)
Applications • Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc. Environment • Operating Temperature: -20 to +75 C • Non operating temperature: -20 to +75 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
