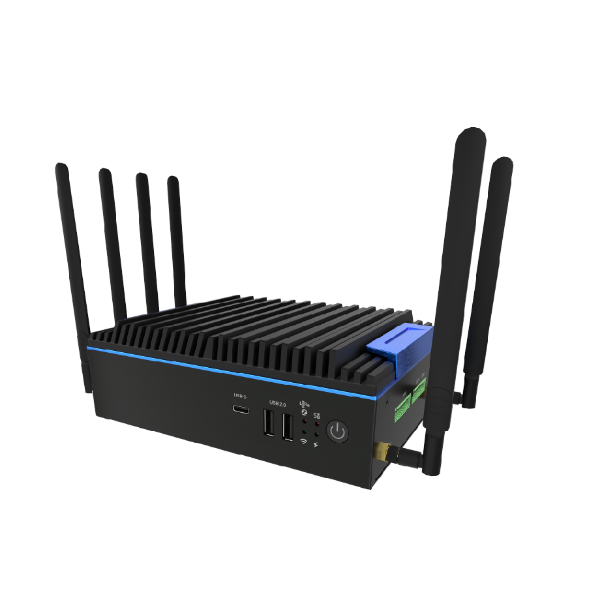

Nano-Jetson 34/67/117/157

Nano ARM® , NVIDIA® Jetson Orin Nano/NX GPU, Dual LAN+WiFi/BT, SIM, 5 x USB, 2 x RS485+2 x RS232

Featured Highlights
	ARM® Cortex®-A78 Processor
	RK3588 Chipset
	NVIDIA® Jetson Orin Nano/NX GPU, HDMI 2.1
	4GB/8GB/16GB Onboard LPDDR5 Memory
	1 x M.2-2280 for NVME SSD, 1 x TF Slot
	2 x Gigabit LAN, Onboard WiFi/BT.
	5 x USB, 2 x RS485+2 x RS232
	1 x 3.5mm ComboJack
	Power Supply: DC12V Power Adapter (UL/CE/FCC Certified)
	OS Support: Debian 12 / Ubuntu 20.04 or newer version
	Applications: Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc.

SKU: Nano-Jetson 34/67/117/157

Specifications
Request for Info

Product specifications

Processor • ARM® Cortex®-A78 6 Core 1.5 GHz • ARM® Cortex®-A78 6 Core 2.0 GHz • ARM® Cortex®-A78 8 Core 2.0 GHz Chipset • Rockchip RK3588 (SOC)
Graphics • 1 x HDMI 2.1 Out，up to 8k@30Hz • Ampere GPU, 4/8/16GB LPDDR5 • Jetson Orin Nano 4GB: 512 NVIDIA® CUDA® cores, 16 Tensor cores, 625Mhz, 7-10w ( 34 TOPS INT8 )； • Jetson Orin Nano 8GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 625Mhz, 7-15w (67 TOPS INT8 )； • Jetson Orin NX 8GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 765Mhz, 10-20w ( 117 TOPS INT8 )； • Jetson Orin NX 16GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 918Mhz,10-25w ( 157 TOPS INT8 )； Memory • 4GB/8GB/16GB LPDDR5 (built-in, non-changeable)
Network • 2 x Gigabit (10/100/1000 Mb/s) LAN • Dual-Band (2.4/5.0GHz) WiFi/BT • 1 x MiniPCIe full size slot (for 4G Wireless Module) • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x M.2 Key-B，for 5G Module (FM650-CN / RM500U-CN） • 1 x M.2 Key-E，for WiFi-6/BT (AP6275P) • 1 x M.2-2280 for NVMe SSD or for other PCIe add-on (like Cambricon MLU220 AI accelerator.)
Storage • 1 x M.2-2280 for NVMe SSD or for other PCIe add-on (like Cambricon MLU220 AI accelerator.) • 1 x TF card reader Audio • 1 x 3.5mm Audio Out jack
Back Panel I/O • 2 x USB 3.0 port • 1 x HDMI® port • 2 x LAN port • 1 x RS232 Serial COM port (Optional RS485) • 1 x SIM card slot • 1 x TF card reader • 1 x 3.5mm audio jack • 1 x DC-In Power Connector Internal I/O • 1 x 10pin GPIO • 1 x 10pin COM • 1 x SIM Slot • 2 x JLED Header • 1 x JPWR • 2 x CPU FAN Header • 1 x Buzzer • 1 x CAN Header • 2 x Internal I/O • 1 x Recovery Button
Other I/O • 1 x 10pin Phoenix Port（1RS232+1RS485） • 1 x 10pin Phoenix Port（8 GPIOs, 4in/4out) • 1 x DB9 port (RS232/485 selectable） • 1 x 4pin header（RS232/TTL selectable） • 2 x USB 2.0 ports (Front) Chassis • Nano Fanless Enclosure • Dimensions: 187mmx 131mmx 57mm • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/ wall mount brackets
Power Supply • Power: DC12V Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Debian 12 / Ubuntu 20.04 or newer version
Applications • Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc. Environment • Operating Temperature: -20 to +75 C • Non operating temperature: -20 to +75 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • ARM® Cortex®-A78 6 Core 1.5 GHz • ARM® Cortex®-A78 6 Core 2.0 GHz • ARM® Cortex®-A78 8 Core 2.0 GHz Chipset • Rockchip RK3588 (SOC)
Graphics • 1 x HDMI 2.1 Out，up to 8k@30Hz • Ampere GPU, 4/8/16GB LPDDR5 • Jetson Orin Nano 4GB: 512 NVIDIA® CUDA® cores, 16 Tensor cores, 625Mhz, 7-10w ( 34 TOPS INT8 )； • Jetson Orin Nano 8GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 625Mhz, 7-15w (67 TOPS INT8 )； • Jetson Orin NX 8GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 765Mhz, 10-20w ( 117 TOPS INT8 )； • Jetson Orin NX 16GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 918Mhz,10-25w ( 157 TOPS INT8 )； Memory • 4GB/8GB/16GB LPDDR5 (built-in, non-changeable)
Network • 2 x Gigabit (10/100/1000 Mb/s) LAN • Dual-Band (2.4/5.0GHz) WiFi/BT • 1 x MiniPCIe full size slot (for 4G Wireless Module) • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x M.2 Key-B，for 5G Module (FM650-CN / RM500U-CN） • 1 x M.2 Key-E，for WiFi-6/BT (AP6275P) • 1 x M.2-2280 for NVMe SSD or for other PCIe add-on (like Cambricon MLU220 AI accelerator.)
Storage • 1 x M.2-2280 for NVMe SSD or for other PCIe add-on (like Cambricon MLU220 AI accelerator.) • 1 x TF card reader Audio • 1 x 3.5mm Audio Out jack
Back Panel I/O • 2 x USB 3.0 port • 1 x HDMI® port • 2 x LAN port • 1 x RS232 Serial COM port (Optional RS485) • 1 x SIM card slot • 1 x TF card reader • 1 x 3.5mm audio jack • 1 x DC-In Power Connector Internal I/O • 1 x 10pin GPIO • 1 x 10pin COM • 1 x SIM Slot • 2 x JLED Header • 1 x JPWR • 2 x CPU FAN Header • 1 x Buzzer • 1 x CAN Header • 2 x Internal I/O • 1 x Recovery Button
Other I/O • 1 x 10pin Phoenix Port（1RS232+1RS485） • 1 x 10pin Phoenix Port（8 GPIOs, 4in/4out) • 1 x DB9 port (RS232/485 selectable） • 1 x 4pin header（RS232/TTL selectable） • 2 x USB 2.0 ports (Front) Chassis • Nano Fanless Enclosure • Dimensions: 187mmx 131mmx 57mm • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/ wall mount brackets
Power Supply • Power: DC12V Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Debian 12 / Ubuntu 20.04 or newer version
Applications • Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc. Environment • Operating Temperature: -20 to +75 C • Non operating temperature: -20 to +75 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
