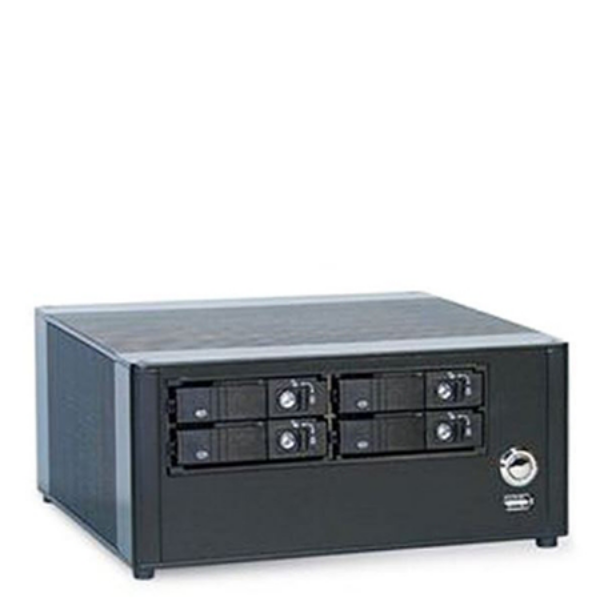

500S Swap 2.5" Bay

Swap 2.5" Bay
Featured Highlights

Dimensions:
8.1"(W) x 8.1"(D) x 3.5"(H)
205.74(W) x 205.74(D) x 88.9(H) mm
4 x Swap 2.5" Bay
RISER or Low-profile Slot
DC6V-24V Power input
Color: Black (Custom colors available with special order)
Supports VESA/Wall-mount or 2U Rackmount
Applications: Vehicle/Boat PC, Set Top Box, Digital Signage, Network Appliance, Traffic Control, Kiosk, POS, Surveillance.
SKU: 500S
Model Processor Chipset Memory Graphics Network USB2.0 USB3.0 Ports Expansion OtherIO Audio
10A-N2600Q N2600 NM10 2 DDR3SO Intel HD 3600 1 Realtek 3 R+2 H 1 HDMI+1 VGA+1 LVDS PCIe 1x 5.1 ALC662
N2600-300R N2600 NM10 2 DDR3SO Intel HD 3600 1 Realtek\RTL8111E 3 R+1 F+2 H 1 HDMI+1 VGA 2 MiniPCIe+PCIe 1x 1xPS/2 5.1 ALC662
J1900AE J1900 Bay Trail 1 DDR3SO 7th Gen. HD 1 Realtek 4 R + 3H 1 R 1 HDMI+1 VGAH+1 LVDS/H MiniPCIe-F+PCIe 1x GPIO 5.1 ALC662
J1900AEL2 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 2 Realtek\RTL8111F 2 R+2 H 1 R 2 HDMI+1 VGAH+1 LVDS/H MiniPCIe-F+PCIe 1x GPIO 5.1 ALC662 7.1 ALC892
J1900AC6 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 1 Realtek 3 R+1 F+2 H 1 R 1 HDMI+1 VGA+1 LVDS/H MiniPCIe-F TPM+1xPS/2/H 5.1 ALC662
J4125 - J5040AEL2 J4105 Gemini Lake 2 DDR4SO Intel UHD 600 1 Realtek+1 Intel 1 R+4 H 2 R 1 HDMI+1 DP+1 eDP/H+1 LVDS/H PCIe x2, 2 M.2m, MiniPCIe full size GPIO 5.1 ALC662
Slim-7000L4 i7-7660u Kaby Lake-u 1 DDR4SO Intel HD 610 4 Intel 2 R+2 H 2 R+2 H 1 HDMI MiniPCIe+PCIe 1x 1xPS/2+TPM 5.1 HDMI
Slim-7000AEL2 i5-7200u Kaby Lake-u 1 DDR4SO Integrated 2 Realtek\RTL8111F 4 H 4 R 1 DP+1 HDMI+1 eDP/H\LVDS PCIe 4x GPIO+LPT 5.1 ALC662
Slim-7000A2/6000A2 i5-7200u Kaby Lake-u Skylake-u 1 DDR4SO Integrated 1 Realtek\RTL8111F+option:1 Realtek\RTL8111F option 2 R+2 H 2 R 2 HDMI/R+1 eDP/H\LVDS 1 MiniPCIe 5.1 ALC662
Slim-3865L4 3865u Kaby Lake-u 1 DDR4SO Intel HD 610 4 Intel 2 R+2 H 2 R+2 H 1 HDMI MiniPCIe+PCIe 1x 1xPS/2+TPM 5.1 HDMI
HM170L4 i5-6300HQ HM170 2 DDR4SO Intel HD 530 1 RJ45+option:1 RJ45 2 H+2 H/R 2 R+4 H 1 DP/H+1 HDMI+1 VGA+1 LVDS/H 1x MiniPCIe+1x PCIe 3.0x16 1xPS/2/H+TPM+GPIO 5.1 ALC662
HM170L2/AEL2 i5-6300HQ HM170 2 DDR4SO Intel HD 530 1 RJ45+option:1 RJ45 2 H+2 H/R 2 R+4 H 1 DP+1 HDMI+1 VGA+1 LVDS/H 1x MiniPCIe+1x PCIe 3.0x16 1xPS/2/H+TPM+GPIO 5.1 ALC662
H310L4 8/9th Socket 1151 H310 Q370 2 DDR4SO Intel UHD 630 4 Intel\i211 4 H 2 R+2 F 1 VGA MiniPCIe+PCIe 4x GPIO 5.1 ALC662
H310AEL2 8/9th Socket 1151 H310 Q370 2 DDR4SO Intel UHD 630 2 Intel\i211 4 R+2 H 2 R+2 F 1HDMI+1DP+1VGA/H+1LVDS/H PCIe 4x TPM 5.1 ALC662
Q370L3E2 8/9th Socket 1151 vPro Q370 2 DDR4SO Intel UHD 630 1 Intel\i219V+2 Intel\i210AT 2 R+4 H 4 R+1 H 2 DP+1 DVI+1 LVDS/H 1 PCIe 16x+1 PCIe 4x GPIO+LPT 7.1 ALC888
H110L2 6/7th Socket 1151 H110 2 DDR4 Intel HD 530 Intel HD 630 1 Realtek\RTL8111H 2 R+4 H 4 R 2 DP+1 HDMI MiniPCIe+PCIe 16x 5.1 ALC662
H110AEL2/i1000A12 6/7th Socket 1151 H110 2 DDR4SO Intel HD 530 Intel HD 630 1 Intel\i219V+1 Intel\i211AT 4 H 4 R 1 DP+1 HDMI+1 VGAH MiniPCIe+PCIe 4x GPIO 7.1 ALC887
H110L2V 6/7th Socket 1151 H110 2 DDR4 Intel HD 530 Intel HD 630 2 Realtek\RTL8111H 2 R+4 H 4 R 2 DP+1 VGA+1 HDMI/H MiniPCIe+PCIe 16x 5.1 ALC662
H110L2A/i1000A13 6/7th Socket 1151 H110 2 DDR4 Intel HD 530 Intel HD 630 2 Realtek 6 H 2 R 1 HDMI+1 VGA MiniPCIe+PCIe 4x GPIO 5.1 ALC662
H110L2C12 6/7th Socket 1151 H110 2 DDR4 Intel HD 530 Intel HD 630 2 Realtek 2 R+2 H 4 R 1 DP+1 HDMI+1 VGA 2 MiniPCIe+PCIe 16x 1xPS/2 5.1 ALC662
Q170A2-3HDMI 6/7th Socket 1151 vPro Q170 2 DDR4SO Intel HD 530 Intel HD 630 2 Intel 4 H 4 R 2 HDMI+1 HDMI2.0+1 LVDS 2 MiniPCIe+PCIe 4x GPIO+TPM 7.1 ALC887
Q170A 6/7th Socket 1151 vPro Q170 2 DDR4SO Intel HD 530 Intel HD 630 2 Intel 4 H 4 R 1 DP+1 HDMI+1 VGAH+1 LVDS 2 MiniPCIe+PCIe 4x GPIO+TPM 7.1 ALC887
B150V3 6/7th Socket 1151 B150 2 DDR4 Intel HD 530 Intel HD 630 1 Realtek\RTL8111H 2 R+4 H 4 R 2 DP+1 HDMI MiniPCIe+PCIe 16x 5.1 ALC662
H8100L2/H8100L3 Socket 1150 Haswell H81 2 DDR3 Intel HD 5000 2 Realtek 4 R+1 H 2 R 1 HDMI+1 DVI+1 VGA 1 MiniPCIe+PCIe 16x 1xPS/2 5.1 ALC662
X570E Socket AM4 Ryzen 3rd AMD X570 2 DDR4 Radeon Vega 1 Intel\i211AT 2 H 4 R+2 H 1 DP+2 HDMI2.0 PCIe 16x 7.1 ALC1220
C3338L4 Atom-C (BGA-1310) Denverton C3000 2 DDR4 128G/1Ch Aspeed AST2400 4x1Gbit Intel LAN 2 R 1 H IPMI 2.0 (AST2400) 1x4 3.0 TPM option
E3-1585L4 Xeon® E3-1585V5 C236 Express Chipset 4 DDR4 Iris® 6200 Pro Graphics 3 x i210+1 x i219LM LAN 1 H 2 R+1 H 1 HDMI+1 VGA PCIe x16 7.1 ALC887
2550L2D D2550 NM10 2 DDR3SO Intel HD 3650 2 Broadcom 4 R+2 H 2 R 1 HDMI+1 VGA PCIe 1x 2xPS/2 5.1 ALC662
J1900AL2 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 2 Realtek 1 R+1 F+2 H 1 R 1 HDMI+1 VGA+1 LVDS/H MiniPCIe-F TPM+GPIO+1xPS/2/H 5.1 ALC662
N3350AEL2 N3350 Apollo Lake 2 DDR3SO Intel HD 500 2 Realtek 4 H 4 R 1 HDMI+1 VGA+1 LVDS MiniPCIe+PCIe 1x LPT+GPIO 7.1 ALC887
N4200AEL2 N4200 Apollo Lake 2 DDR3SO Intel HD 505 2 Intel\i211AT 5 R 4 R 1 HDMI+2 DP+1 LVDS MiniPCIe+PCIe 1x GPIO+TPM 5.1 ALC662
N3050A1 N3050 Braswell-u 2 DDR3SO 8th Gen. HD 1 Realtek 3 R+3 H 1 R 1 HDMI+1 VGA+1 LVDS/H 2 MiniPCIe GPIO+LPT 7.1 ALC892
N3150A1 N3150 Braswell-u 2 DDR3SO 8th Gen. HD 1 Realtek 3 R+3 H 1 R 1 HDMI+1 VGA+1 LVDS/H 2 MiniPCIe GPIO+LPT 7.1 ALC892
Slim-7000e4 i7-7500u Kaby Lake-u Skylake-u 1 DDR4SO 7th Gen. HD 1 Realtek/F\RTL8111F 4 R 6 R 2 HDMI/F 4 MiniPCIe GPIO 5.1 ALC662
i5-6267FL i5-6267u Skylake-u 2 DDR3SO Intel Iris 550 1 Realtek\RTL8111F 2 R+4 H 2 R+2 H 1 HDMI+1 VGA+1 LVDS 1xPS/2+LPT+GPIO 5.1 ALC662
i5-6200FL2 i5-6200u Skylake-u 2 DDR3SO Intel HD 520 2 Realtek 2 H 2 R+2 H 1 HDMI+1 DVI 2 MiniPCIe 5.1 ALC662
i5-6200L2B i5-6200u Skylake-u 2 DDR3SO Intel HD 520 2 Realtek 2 H 2 R+2 H 2 HDMI 2 MiniPCIe 5.1 ALC662
i5-6200SL i5-6200u Skylake-u 2 DDR3SO Intel HD 520 1 Realtek 2 R+2 H 2 R+2 H 1 HDMI+1 DVI 2 MiniPCIe 5.1 ALC662
Nano-U10A i7-10710u Comet Lake-u/Whiskey Lake-u Platform (SOC) 2 DDR4SO UHD 620 / Iris Graphics 1 Intel® i219LM+SIM 1 4 1 HDMI + Optional HDMI TPM 5.1 ALC662
H310A1 8/9th Socket 1151 H310 1 DDR4SO Intel UHD 630 1 Intel\i219V 4 H 4 R+2 H 1 HDMI+1 VGA/H+1 LVDS/H 5.1 ALC662
H410A1 10th Socket 1200 H410 2 DDR4SO Intel UHD 630 1 Reltek\RTL8111F 4R 2R+2F 1 DP + HDMI LPT/S 5.1 ALC662
B365AL2 6/7/8/9th Socket 1151 B365 2 DDR4SO Integrated 2 Realtek\RTL8111H 4 H 4 R+2 H 1 DP+1 HDMI+1 LVDS/H TPM 2.1 ALC269
Slim-H110A2 6/7th Socket 1151 H110 1 DDR4SO Intel HD 530 Intel HD 630 1 Realtek\RTL8111F 4 H 4 R 1 HDMI+1 VGA+1 LVDS 1 MiniPCIe+1 MiniPCIe-F 5.1 ALC662
H110A1/i1000A10 6/7th Socket 1151 H110 2 DDR4SO Intel HD 530 Intel HD 630 1 Realtek 4 H 4 R 1 HDMI+1 VGA+1 LVDS MiniPCIe 7.1 ALC887
2550iD D2550 NM10 2 DDR3SO Intel HD 3600 1 Broadcom 4 R+2 H 1 HDMI+1 VGA PCIe 1x 2xPS/2 5.1 ALC662
2550L2D-MxPC D2550 NM10 2 DDR3SO Intel HD 3650 2 Broadcom 4 R+2 H 2 R 1 HDMI+1 VGA PCIe 1x 2xPS/2 5.1 ALC662
2600L2 N2600 NM10 1 DDR3SO Intel HD 3600 2 Realtek 4 R+2 H 1 VGA 2 MiniPCIe+PCI 2xPS/2 5.1 ALC662
H8700L8-1U Socket 1150 Haswell H87 2 DDR3SO Intel HD 5000 8 Intel/F 2 F+4 H 2 H 1 VGA MiniPCIe+PCIe 8x

Support Models

*
*
*
