Nano-N7000D - Embedded Alder Lake Mini PC

Nano-N7000D - Embedded Alder Lake Mini PC

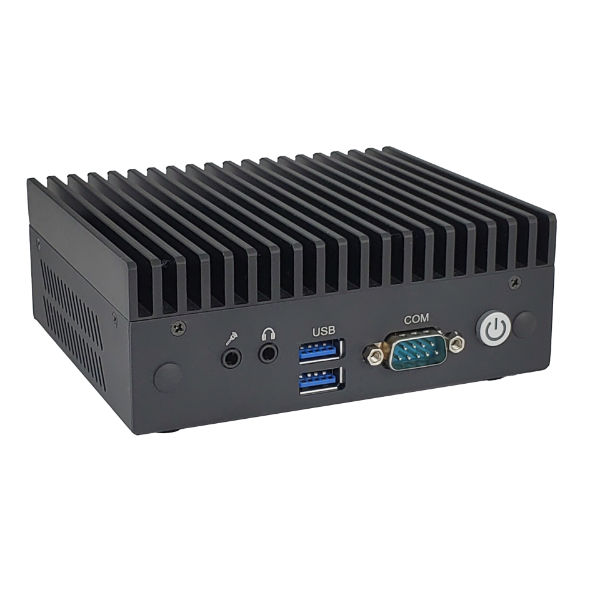

Picture of NUC-N7000D

NUC-N7000D

12th Gen. Alder Lake-N, 12th Gen. Graphics, HDMI + DP 2 Display, COM+MiniPCIe+SIM

Featured Highlights
	Intel® Celeron®/Pentium® Processor
	Intel® Alder Lake-N Platform (SOC)
	Intel® 12th Generation UHD Graphics, DP+HDMI 2.0
	On-board 4GB/8GB DDR4, up to 32GB Memory
	64GB/128GB eMMC
	MiniPCIe for mSATA or 4G-LTE modem or Movidius™ Myriad™ X
	Gigabit LAN, M.2 WiFi
	2 USB 3.0, 2 USB 2.0, COM
	Cmedia USB HD Audio
	DC12V 3A 36W or higher wattage Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 10/11, IoT, Linux
	Applications: Digital Signage, Micro Platform for Edge Computing, OpenVino®, Audio/Video PC, Set Top Box, etc.

In Stock

SKU: NUC-N7000D

Specifications
Request for Info

Product specifications

Processor • Intel N100 3.40GHz 4Cores 4Threads 6M 6W • Intel N95 1.70/3.40GHz 4Core 4Threads 6M 15W • Intel N97 3.40GHz 4Cores 6M 12W • Intel N50 3.40GHz 2Cores 6M 6W • Intel N200 3.70GHz 4Cores 4Threads 6M 6W • Intel i3-N300 3.80GHz 8Cores 8Threads 6M 7W • Intel i3-N305 3.80GHz 8Cores 8Threads 6M 9W • Intel Atom x7213E 3.20GHz 2Cores 6M 10W • Intel Atom x7211E 3.20 GHz 2Cores 6M 6W • Intel Atom x7425E 3.40 GHz 4Cores 6M 12W Chipset • Intel® Alder Lake-N Platform (SOC)
Graphics • Intel 12th Generation UHD Graphics • Support 2 Graphics ports • 1 x DP 1.4, 4K 60Hz Graphics port • 1 x HDMI® 2.1, supporting a maximum resolution of 4K @60Hz Memory • On-board 4GB or 8GB DDR4 • 2933/2666MHz unbuffered non-ECC • Supports up to 32GB (for custom order MOQ required)
Network • 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x MiniPCIe full size slot with SIM socket for 4G-LTE modem or Wi-Fi or 2nd LAN module • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x MiniPCIe full size slot with SIM socket 4G-LTE modem (Optional for mSATA, Wi-Fi, Movidius™ Myriad™ X VPU for OpenVino®) • 1 x M.2 2230 (for WiFi+BT or Other Module)
Storage • 1 x MiniPCIe full size slot (for optional mSATA-6Gb/s) • 64GB/128GB eMMC Flash Internal Storage Audio • High Quality CMedia CM119B USB Audio Codec • 2 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 2 x USB 2.0 ports • 1 x DP • 1 x HDMI® port • 1 x LAN port • 1 x DC-In Power Connector Other I/O • 2 x USB 3.0 ports (Front) • 1 x Serial COM port (Front) • 2 x 3.5mm Audio jacks (Front)
System BIOS • AMI® UEFI 64MBit / Legacy BIOS • Watchdog supported Systemboard • Small Form Factor • Back I/O
Chassis • NUC-N3 Fanless Enclosure • Dimensions: 4.96"(W) x 4.33"(D) x 1.33"(H) (Depth dimension is changeable), weight: 1 lbs., Gross: 3.5 lb. • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount bracket Power Supply • Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 10/11, IoT, Linux Application • Digital Signage, Edge AI, OpenVino®, Entertainment PC, Set Top Box, etc.
Environment • Operating Temperature: -10 to +50 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
