Think Big. Go Small. Eco-Smart Computing

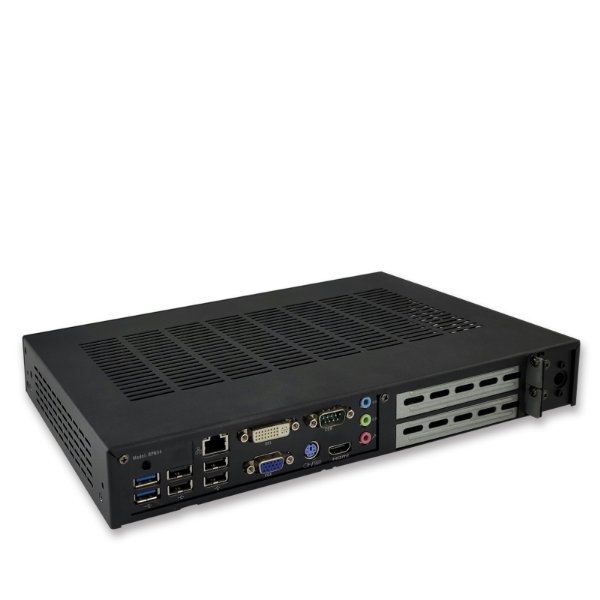

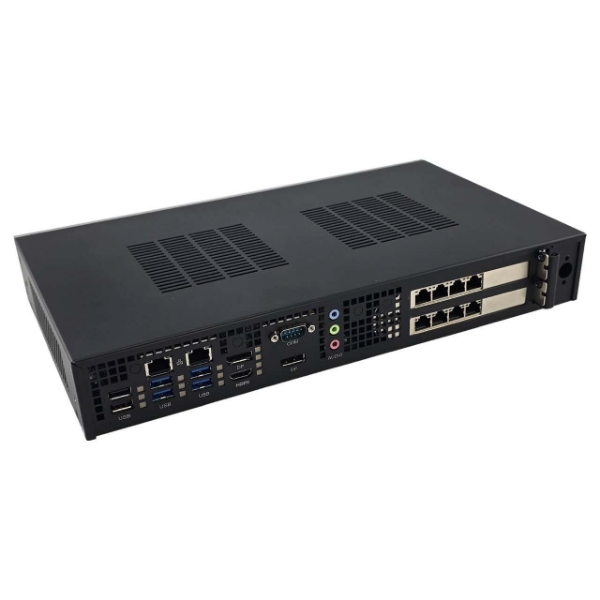

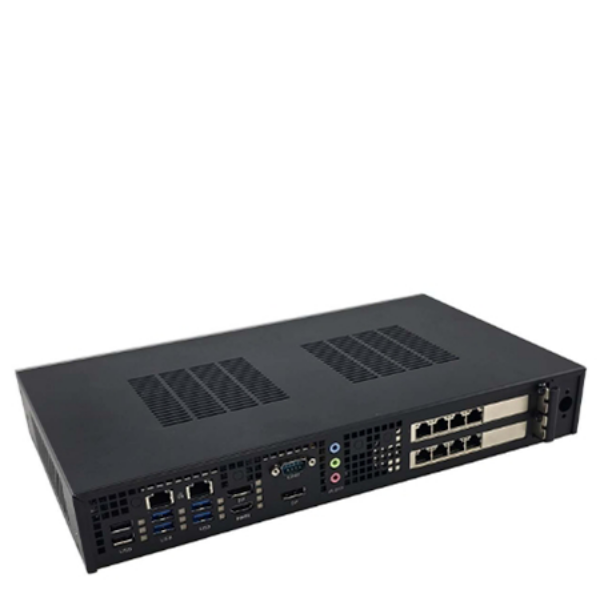

1750C/R

1.75"H x 12.25W x 8D Small Form Factor PC with full size slot
Featured Highlights


Dimensions:
1.75" (H) x 12.25 " (W) x 8" (D)
Xeon, Core i7/i5/i3/Pentium/Celeron
Kayb Lake, Skylake, Broadwell, Haswell,Bay Trail, Braswell, Apollo Lake family
Full size PCIe 16x Slot
up to 2 x HD/SSD Drives
DC12V up to 200W Fanless Power Adapter
Small Platform, High Performance Computing
Color: Black (Custom colors available with special order)
OS support: Windows 10, 8,  7,  XP,  Embedded, Linux, FreeBSD, Solaris.
Applications: AV Appliance, Entertainment, Video wall, Digital Signage, Surveillance, Security, Medical Equipment, VoIP, Transportation, IoT.



SKU: 1750C/R
Modelaaa CPU Chipset Memory Graphics Ports mSATA M.2 LAN Expansion
H310L4 8/9th Socket 1151 H310 Q370 2 DDR4 SO-DIMM Intel UHD 630 1 VGA 1 0 4 Intel\i211 MiniPCIe+PCIe 4x
H310AEL2 8/9th Socket 1151 H310 Q370 2 DDR4 SO-DIMM Intel UHD 630 1 HDMI+1 DP+1 VGA/H+1 LVDS/H 1 0 2 Intel\i211 PCIe 4x
Q370AEL2 8/9th Socket 1151 vPro Q370 2 DDR4 SO-DIMM Intel UHD 630 1 HDMI+1 DP+1 LVDS/H+1 VGA/H 1 0 2 Intel\i211 PCIe 4x
H410A1 10th Socket 1200 Comet Lake H410 2 DDR4 SO-DIMM Intel UHD 630 1 HDMI+1 miniDP/S+1 LVDS/H 0 1-4/8 1 Reltek\RTL8111F 0
B150V3 6/7th Socket 1151 B150 2 DDR4 DIMM Intel HD 530 Intel HD 630 2 DP+1 HDMI 1 0 1 Realtek\RTL8111H MiniPCIe+PCIe 16x
H110L2 6/7th Socket 1151 H110 2 DDR4 DIMM Intel HD 530 Intel HD 630 2 DP+1 HDMI 1 0 1 Realtek\RTL8111H MiniPCIe+PCIe 16x
C242L2 Xeon Socket-S 1151pin C242 2 DDR4 DIMM Aspeed AST2500 1 VGA 0 1-8 2 Intel\i210+1 IPMI 1 PCIe 16x
C3338L4 C3338 Denverton 2 DDR4 DIMM Aspeed AST2400 1 VGA 0 2 4 Intel+1 IPMI PCIe 4x
Z490L2 10th Socket 1200 Comet Lake Z490 2 DDR4 DIMM Intel UHD 630 1 HDMI+1 DP 0 2-8 1 Reltek\RTL8125BG+1 Intel\i219V PCIe 16x
Q470L2G 10th Socket 1200 Comet Lake Q470 2 DDR4 SO-DIMM Intel UHD 1 DP+1 HDMI+1 HDMI2.0+1 eDP\LVDS/H 0 2-8 1 Intel\i219V+1 Intel\i211 1 MiniPCIe+1 PCIe 16x
H470L2G 10th Socket 1200 Comet Lake H470 2 DDR4 DIMM Integrated 2 HDMI+1 DP 0 2-6/8 2 Intel+11ac WiFi/BT PCIe 16x
X570E Socket AM4 Ryzen 3rd AMD X570 2 DDR4 DIMM Radeon Vega 1 DP+2 HDMI2.0 0 2-6/8 1 Intel\i211AT PCIe 16x

Support Models

*
*
*
