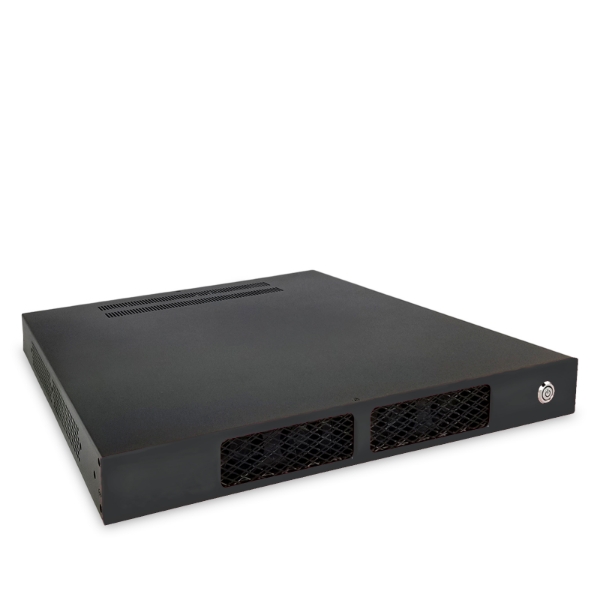

1U-1000S

Low Cost Mini Server with PCIe 16x Slot.
Dimensions: 17.2(W)x12.9(D)x1.75(H) inch
Mini 1U front mount, Fanless Aluminum Chassis.
PCIe 4x or 16x Slot through RISER
2 x 2.5" Hot Swap Drive Bay+mSATA/M.2 SSD
Mini-ITX Form Factor(171mm X 171mm)
180W to 400W mini 1U AC Power Supply 100-240V
Color: Black
OS support: Windows Server 2016, Windows 10, 8,7, XP, Embedded, Linux: CentOS, Ubuntu, FreeBSDs.
Applications: Internet Server, Network Appliance, Phone System, Digital Signage, Office Server, Home Server.
SKU: 1U-1000S
Model CPU Chipset Memory Graphics Ports COM Audio LAN Expansion
H310L4 9th Socket 1151 Coffee Lake H310 Q370 2 DDR4 SO-DIMM Intel UHD 630 1 VGA 2 H 5.1 ALC662 4 Intel\i211 MiniPCIe+PCIe 4x
H310AEL2 9th Socket 1151 Coffee Lake H310 Q370 2 DDR4 SO-DIMM Intel UHD 630 1 HDMI+1 DP+1 VGA/H+1 LVDS/H 2 H 5.1 ALC662 2 Intel\i211 PCIe 4x
HM170L2/AEL2 Core i5-6300HQ HM170 2 DDR4 SO-DIMM Intel HD 530 1 DP+1 HDMI+1 VGA+1 LVDS/H 6 H/RS232 5.1 ALC662 1 RJ45+option:1 RJ45 1x MiniPCIe, 1x PCIe 3.0x16
HM170L4 Core i3-6100H HM170 2 DDR4 SO-DIMM Intel HD 530 1 DP/H+1 HDMI+1 VGA+1 LVDS/H 6 H/RS232 5.1 ALC662 1 RJ45+option:1 RJ45 1x MiniPCIe, 1x PCIe 3.0x16
J4105AEL2/J5005AEL2 Celeron J4105 Gemini Lake 2 DDR4 SO-DIMM Intel UHD 600 1 HDMI+1 DP+1 eDP/H+1 LVDS/H 2 H 5.1 ALC662 1 Realtek+1 Intel PCIe 2x
J4005AE/J4105AE Celeron J4005 Gemini Lake 2 DDR4 SO-DIMM 1 HDMI+1 DP+1 eDP+1 LVDS 2 H 5.1 ALC662 1 Realtek PCIe 2x
J1900AEL2 Celeron J1900 Bay Trail 1 DDR3L SO-DIMM 7th Gen. HD 2 HDMI+1 VGAH+1 LVDS/H 1 H 5.1 ALC662 7.1 ALC892 2 Realtek\RTL8111F MiniPCIe-F+PCIe 1x
J1900AE Celeron J1900 Bay Trail 1 DDR3L SO-DIMM 7th Gen. HD 1 HDMI+1 VGAH+1 LVDS/H 1 H 5.1 ALC662 1 Realtek MiniPCIe-F+PCIe 1x
H410A1 10th Socket 1200 Comet Lake H410 2 DDR4 SO-DIMM Intel UHD 630 1 HDMI+1 miniDP/S+1 LVDS/H 1 R 5.1 ALC662 1 Reltek\RTL8111F
Q370AEL2 9th Socket 1151 Coffee Lake Q370 2 DDR4 SO-DIMM Intel UHD 630 1 HDMI+1 DP+1 LVDS/H+1 VGA/H 2 H 5.1 ALC662 2 Intel\i211 PCIe 4x
H310CAL2 6/7/8/9th Socket 1151 H310C 1 DDR4 SO-DIMM Intel UHD 1 DP+1 HDMI 2 S 5.1 ALC662 2 Realtek\RTL8111H
H310CA 6/7/8/9th Socket 1151 H310C 1 DDR4 SO-DIMM Intel UHD 630 1 DP+1 HDMI 2 S 5.1 ALC662 1 Realtek\RTL8111H
Slim-7000e4 7th Gen. i7/i5/i3-u Kaby Lake-u Skylake-u 1 DDR4 SO-DIMM 2 HDMI/F 1 R/RS-232 5.1 ALC662 1 Realtek/F\RTL8111F 4 MiniPCIe
Slim-7000L4 Core i7-7660u Kaby Lake-u 1 DDR4 SO-DIMM 1 HDMI 1 H 5.1 HDMI 4 Intel MiniPCIe+PCIe 1x
i5-6267FL Core i5-6267u Skylake-u 2 DDR3L SO-DIMM 1 HDMI+1 VGA+1 LVDS 1 H/RS-232+1 H/RS-485 5.1 ALC662 1 Realtek\RTL8111F
Slim-7000AEL2 7th Gen. i7/i5/i3-u Kaby Lake-u 1 DDR4 SO-DIMM 1 DP+1 HDMI+1 eDP/H\LVDS 5 H/RS-232+1 H/RS-485 5.1 ALC662 2 Realtek\RTL8111F PCIe 4x
C242L2 Xeon Socket-S 1151pin C242 2 DDR4 DIMM Aspeed AST2500 1 VGA 1 H/RS232 7.1 ALC892 2 Intel\i210+1 IPMI 1 PCIe 16x
C3338L4 Atom C3338 Denverton 2 DDR4 DIMM Aspeed AST2400 1 VGA 1 H option 4 Intel+1 IPMI PCIe 4x
Z490L2 10th Socket 1200 Comet Lake Z490 2 DDR4 DIMM Intel UHD 630 1 HDMI+1 DP 7.1 ALC1220 1 Reltek\RTL8125BG+1 Intel\i219V PCIe 16x
H470L2G 10th Socket 1200 Comet Lake H470 2 DDR4 DIMM Integrated 2 HDMI+1 DP 7.1 ALC1220 2 Intel+11ac WiFi/BT PCIe 16x
H310CA6 6/7/8/9th Socket 1151 H310C 1 DDR4 SO-DIMM 1 HDMI+1 VGA+1 LVDS/H 6 H 5.1 ALC662 1 Realtek\RTL8111H
B150V3 Socket 1151 Skylake B150 2 DDR4 DIMM Intel HD 530 2 DP+1 HDMI 1 R+5 H 5.1 ALC662 1 Realtek\RTL8111H MiniPCIe+PCIe 16x
H110L2 Socket 1151 Skylake H110 2 DDR4 DIMM Intel HD 530 2 DP+1 HDMI 1 R+5 H 5.1 ALC662 1 Realtek\RTL8111H MiniPCIe+PCIe 16x
U10A/U10AL2 10th Gen. i7/i5/i3-u Comet Lake-u 2 DDR4 SO-DIMM 1 DP\VGA+1 HDMI+1 LVDS/H 1 H 5.1 ALC662 1 Realtek\RTL8111H+option:1 Realtek\RTL8111H
Slim-7000A2/6000A2 7th Gen. i7/i5/i3-u Kaby Lake-u Skylake-u 1 DDR4 SO-DIMM 2 HDMI/R+1 eDP/H\LVDS 6 H 5.1 ALC662 1 Realtek\RTL8111F+option:1 Realtek\RTL8111F 1 MiniPCIe
Slim-3865L4 Celeron 3865u Kaby Lake-u 1 DDR4 SO-DIMM 1 HDMI 1 H 5.1 HDMI 4 Intel MiniPCIe+PCIe 1x
J1900AC6 Celeron J1900 Bay Trail 1 DDR3L SO-DIMM 1 HDMI+1 VGA+1 LVDS/H 6 H 5.1 ALC662 1 Realtek MiniPCIe-F
i2311 8th Socket 1151 Coffee Lake H310C 1 DDR4 SO-DIMM 1 HDMI+1 LVDS/H 1 R/RS232 5.1 ALC662 1 Realtek\RTL8111H
X570E Socket AM4 Ryzen 3rd AMD X570 2 DDR4 DIMM 1 DP+2 HDMI2.0 1 H 7.1 ALC1220 1 Intel\i211AT PCIe 16x
Slim-A320A Socket AM4 Ryzen 3rd AMD A320 2 DDR4 SO-DIMM Radeon Vega 8 Graphics(3200G)/Radeon Vega 11 Graphics(3400G) 1 HDMI+1 LVDS/H 1 R+1 H 2.1 ALC269 1 Realtek\RTL8111H
