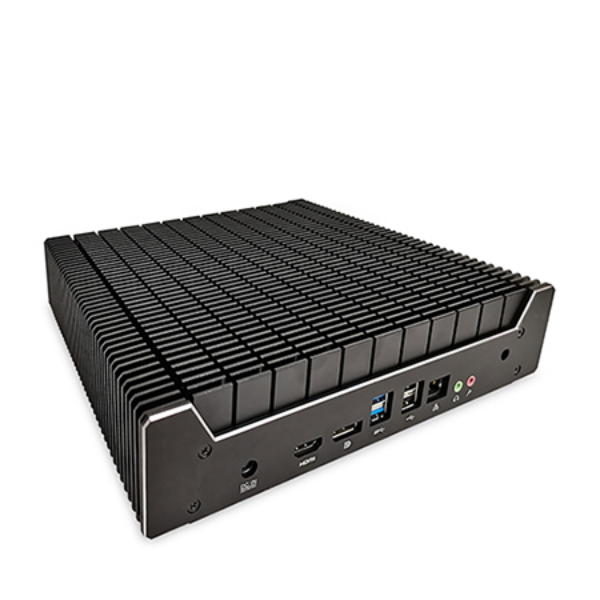

236F3

Fanless Chassis for Socket-S Core i5/i7 Products

Featured Highlights
	Dimensions: 10"(W) x 8.85"(D) x 2.36"(H)
	ITX Fanless Case for Slim ITX Socket-S MB
	M.2 or mSATA SSD Drive Bay
	Built-in DC to DC Converter
	DC12-19V Fanless Power Adapter
	Net weight: 7 lb, packaging weight 10 lb.
	Color: Black (Custom colors available with special order)
	Applications: Digital Signage, AV Home Entertainment, Vehicle/ Boat PC, Set top box, Surveillance, Network Appliance, Medical Equipment, IP Phone

SKU: 236F3

Supported Models
Request for Info

Model	Processor	Chipset	Memory	Graphics	Network	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio

H310L4	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	4 Intel\i211	4 H	2 R+2 F	1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
H310AEL2	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	2 Intel\i211	4 R+2 H	2 R+2 F	1HDMI+1DP+1VGA/H+1LVDS/H	PCIe 4x	TPM	5.1 ALC662
H410AL2	10th Socket 1200	H410	2 DDR4SO	Intel UHD 630	2 Realtek\RT8111H	2R	2R+2F	1 HDMI+1DP/VGA		Option: LPT/S	5.1 ALC662
Q370L3E2	8/9th Socket 1151 vPro	Q370	2 DDR4SO	Intel UHD 630	1 Intel\i219V+2 Intel\i210AT	2 R+4 H	4 R+1 H	2 DP+1 DVI+1 LVDS/H	1 PCIe 16x+1 PCIe 4x	GPIO+LPT	7.1 ALC888
B8500L4/H8100L4	Socket 1150 Haswell	B85	4 DDR3	Intel HD 5000	4 Intel\i350	4 H	2 R	1 HDMI+1 DP+1 VGA	1 MiniPCIe+PCIe 8x	TPM	5.1 ALC662
H8100L2/H8100L3	Socket 1150 Haswell	H81	2 DDR3	Intel HD 5000	2 Realtek	4 R+1 H	2 R	1 HDMI+1 DVI+1 VGA	1 MiniPCIe+PCIe 16x	1xPS/2	5.1 ALC662
H610V3	Alder Lake	H610	2 DDR4SO	UHD 770/730	Realtek® RTL8125B	3 R	2 R	2 HDMI, DP			Realtek® ALC897
H610A	Alder Lake	H610	2 DDR4SO	Intel® 12th Gen Xe Graphics UHD 770/730/710	1 LAN + WiFi/BT		4 R	1 HDMI + 1 VGA	1		7.1 ALC897
H610L2	Alder Lake	H610	2 DDR4 U-DIMM	UHD 770/730	2 LAN	3 R	2 R	2 HDMI, DP			ALC897
H610AL2	12th Gen Socket-S series	H610	2 DDR4 SODIMM	UHD	2 LAN+WiFi/BT+5G/4G	2 R	2 F	2 HDMI, DP		2 COM	7.1 ALC897
Q670L2	12th Gen Socket-S series	Q670	2 DDR5 DIMM	UHD 770	2 LAN 2.5GbE			2 DP +1 HDMI	PCIe 5.0 x16+ PCIe 4.0 x4 +2M.2
Q670L2D	13th/14th Gen Raptor Lake	Q670	2 x DDR5 DIMM	UHD 770	2LAN 2.5GbE+2 M.2	4	6	2HDMI 2.1+2DP 1.4+VGA/DP+LVDS	PCIe 5.0 x16+PCIe 4.0	2 COM	7.1CH ALC897
B760L2	13th/14th Gen Socket-S series	B760	2 DDR5 DIMM	UHD 770	2LAN 2.5GbE+2 M.2		2	HDMI 2.1+DP 1.4+VGA/DP+LVDS	PCIe 5.0 x16+PCIe 4.0
Nano-U13FL2C
Nano-U12FL2C	Intel® Alder Lake-u/p	Intel® Alder Lake-u/p (SOC)	2 DDR4	Intel® Iris® Xe or 12th Gen UHD	2 Intel® 2.5 Gigabit			2 HDMI+1 DP
Nano-U12FL2C6	12th/13th Gen i7/i5/i3	Alder/Raptor Lake-u/p	2 x DDR4 SO-DIMM	Iris Xe	3/4 LAN		8F + 4F	DP+HDMI+LVDS/eDP	4 x RS422/RS485		5.1
Nano-U10F	i7-10510u	Comet Lake-u	2 DDR4SO	Intel UHD 620	1 Realtek\RTL8111H	2 F	2 F + 2 R	1 HDMI+1 DP			2.1 ALC269
Nano-U10FL2C/Nano-U10L2C	BGA-1528	Comet Lake-u	2 DDR4SO	Intel UHD 4K	2 x Intel® i211+i219	2F + 2S	2F + 2S	1 HDMI+ 1 DP+ 1 Type-C+ 3 USB+ 1 COM+ 2 LAN+ 1 SIM+ 1 SD+ S/PDIF			5.1 ALC662
